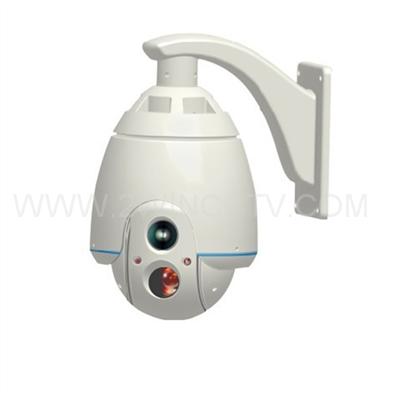

1. 6” dome camera.
2. IR illuminator with ability to auto change angles according to the viewing angle of vari-focal TV lens as it changes.
3. Long Night Vision Range: People identifiable at 150 meters in the dark (@Sony480 optical x18).
4. Clear Picture: At far and near sight with no “fish eye” or “ghost” effects at any viewing angles.
5. Low Power Consumption (less than 5W): No heat dissipation issue means no damage to any of the nearby electronic components.
6. Long Life Expectancy: 5-10 times longer life than that of a traditional LED.
7. IP66 waterproof.

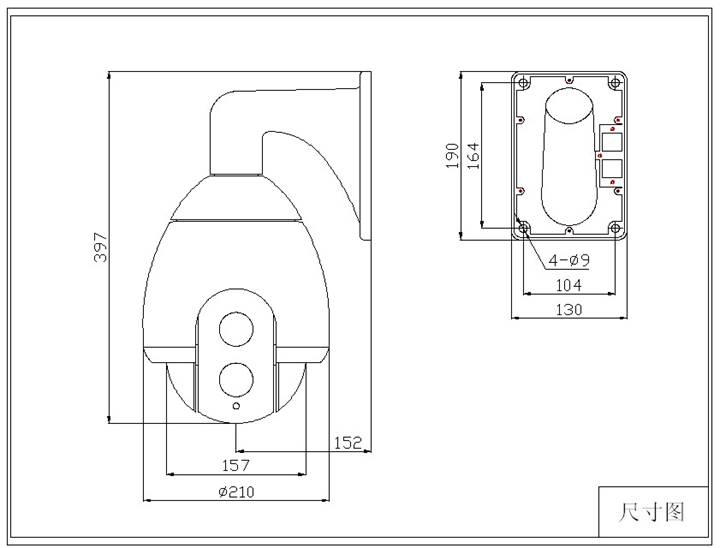

Structure drawing:

Specifications
Power supply |
AC24V±10% 3A |
Power consumption |
36W (48W with heater on ) |
Weight |
7.5KG |
Humidity |
10~90% |
Operation Temperature |
-35℃~55℃ |
Water Proof |
IP66 |
Basic Data
Pan Preset Speed |
240°/s |
Tilt Preset Speed |
150°/s |
Manual Speed Pan |
0º~150°/s |
Manual Speed Tilt |
0º~55°/s |
Preset Points |
128 |
Motion Detection |
Yes, 6 different area |
Scanning Speed |
0.5~60°/s |
Pattern |
8 minutes |
IR LED Specifications
IR LED |
Single high power chip |
Wavelength |
850nm |
Long Night Vision Range |
Identify people in 150 meters in the dark (@Sony480 optical x18). |
Power Consumption |
4~5W |
IR Control |
auto/menu/ manual |
IR LED Life Expectancy |
Over 50,000 hours |
IR Vari-Focal Illuminator Specs
Variable Angle |
4°~40° |
Measure |
40XØ50mm |
Communication |
TTL
(Automatically recognize Sony, HITACHI,CNB cameras. Customized software for other cameras.) |
Camera and TV Lens Specs
Description |
SONY 480 |
Hitachi |
27x Samsung |
22x CNB |
23x 1/4’’ Sony |
18x 1/4’’ DFT |
Image Sensor |
1/4'' SONY CCD |
1/3'' Hitachi Vk888 |
1/4'' Samsung CCD |
1/4’’ CNB CCD |
1/4’’ Sony CCD |
1/4’’ DFT CCD |
Active Pixels |
P:752*582(440K) |
P:380k (768*494) N:440k (752*582) |
P:752(H)*582(V) N:768(H)* 494(V) |
P:811(H)* 508(V) N:768(H)*494(V) |
P:752*582(440K) |
P:752*582(440K) |
N:768*494(380K) |
N:768*494(380K) |
N:768*494(380K) |
Scanning Interlacing |
2:01 |
2:01 |
2:01 |
2:01 |
2:01 |
2:01 |
Synchronization |
Internal/Extrinsic |
Video Output |
VBS 1.0Vp-p/75Ω |
White Balance |
Auto/Manual/Indoor/Outdoor/Auto tracking/One button way |
Scanning System |
15.625KHz(H) 50Hz(V) |
Horizontal Resolution |
480TVL |
540TVL |
570TVL |
580TVL |
540TVL |
480TVL |
S/N Ratio |
>50dB |
>50dB |
>50dB |
>50dB |
>50dB |
>50dB |
Electronic Shutter |
1/1.5~1/30,000s |
1/1~1/30,000s |
1/1.5~1/30,000s |
1/1~1/10,000s |
Min.Illumination |
0.01Lux |
0.01Lux |
0.01Lux |
0.01Lux |
Focal Length |
f=4.1~73.8mm |
f=4.7~84.6mm |
f=3.5~94.5mm |
f=3.6~82.8mm |
f=3.9~89.7mm |
f=3.9~85.8mm |
Zoom |
Total 216X |
Total 216X |
Total 420X |
Total 220X |
Total 276X |
Total 216X |
Optical 18X |
Optical 18X |
Optical 27X |
Optical 22X |
Optical 23X |
Optical 18X |
Digital 10X |
Digital 10X |
Digital 12X |
Digital 10X |
Digital 12X |
Digital 10X |
Focal & Iris |
Auto/Manual |
