4ch D1 DVR
Sale Points
1.4ch D1 real time recording
2.Audio input:1ch,Audio output:1ch
3.Dual-stream design
5.Support RS485
6.Support free DDNS domain name
7.Support 1pcs HDD,unlimited for the capacity
8.SupportMobile phone remote view
Use the standard H

Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking up less bandwidth resources

GUI OSD interface, more intuitive, easier to use for user-friendly

Support 4ch Full D1 real time recording resolution, ahead to D1 High-Definition period.

Dual-stream design, network remote view effects and local recording effects parameters can be set

separately, independently of each other.

Hexaplex operation simultaneously: Preview, recording,playback,backup,networklive,mobile phone


Support Multiple channel playback (Support 4CH playback simultaneously, each channel can be

enlarge to full screen)

Support Network function: One IE browser centralized monitoring and CMS Software for multiple DVR

(up to 255 DVR simultaneously)

Recording playback support: Normal play, Speed play, Fast back play, Manual single-frame slow play

Supports Built-in free DDNS domain name, with Server address: http://www.dvrcenter.com

Support Mobile phone remote view by Symbian S60V3/V5;WindowsMobile;Android system; Iphone;


System auto recovery to power after power reconnected, and return to the pre-power-down state




 Video Compression Format


 Video System


 Video Input/Output(BNC)

 4CH BNC input/1CH BNC output

 Audio Input/Output

 1CH audio input,1CH audio output(RCA)

 Maximum Recording Rate
(each channel support at D1 real-time)

 D1:704*480,120fps <NTSC> /704*576,100fps <PAL>
 HD1:704*240,120fps <NTSC> /704*288,100fps <PAL>
 CIF:352*240 ,120fps <NTSC> /352*288,100fps  <PAL>
 QCIF:176*120,120fps <NTSC> /176*144,100fps  <PAL>

 Image Quality Setting

 Supper Best,Well,Good,Medium,Normal and Bad

 Hard Disk Storage

 Support one SATA HDD, unlimited for the capacity

 Alarm Input/Output


 Multiplex Operation

 Live display/record/playback/backup/network transmit

 Recording Mode


 Playback Mode

 Multiple slow and rapid play speeds,manual and single-frame
 play modes,and support of drag the sliding bar to set.

 Backup Device

 USB flash disk/USB remove HDD/Network/USB DVD-RW

 Pre-alarm Recording

 Recording for 10 seconds before alarming

 Network Protocol


 Ethernet remote view

 Support remote surveillance up to 10 users simultaneously

 VGA Interface

 YES ,support VGA and BNC can work at the same time

 Log record function


 Video Loss Detection


 Video Adjustable

 Hue /Saturation /Contrast /Brightness adjust

 PTZ Control

 YES , built-in RS485 port,support 17 kinds protocols

 IR Remote control/USB Mouse


 Power Source

 DC 12V


 250(W) x 45(H) x 224(D)

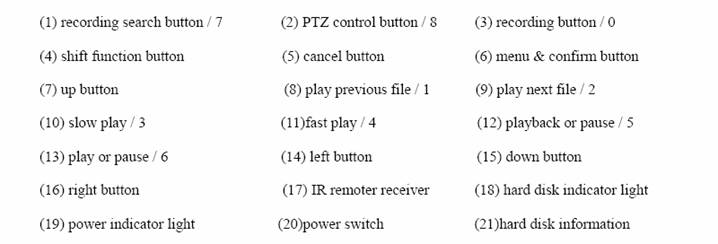

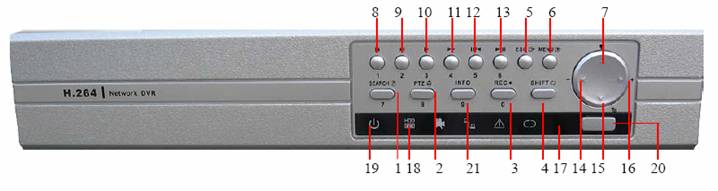

Front Panel

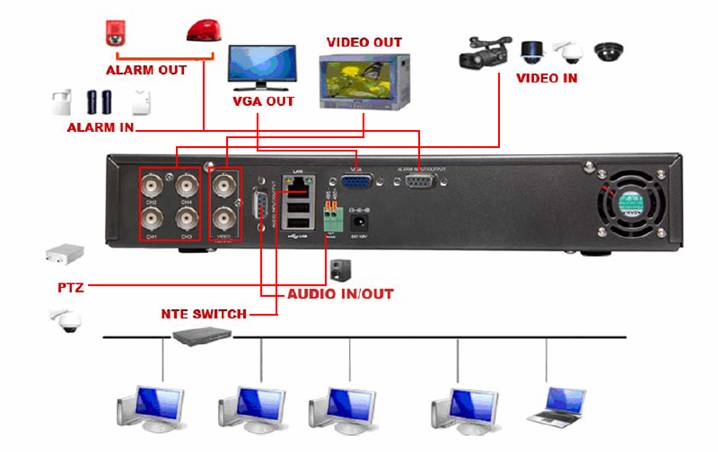

Reference Practical Product Connection Picture

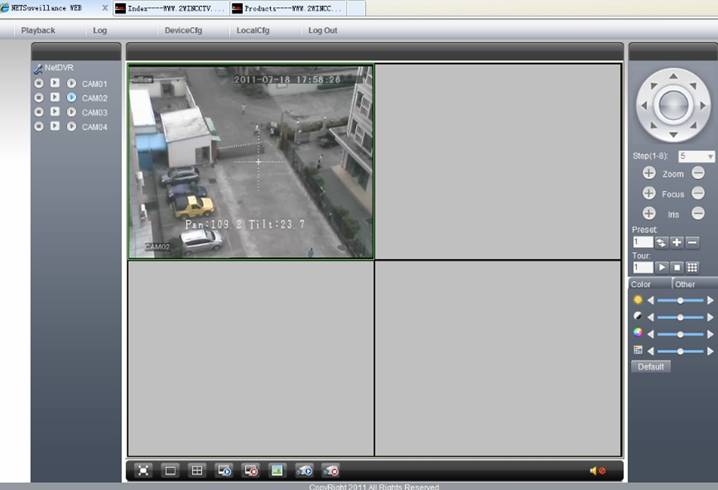

Internet Explorer Surveillance Interface

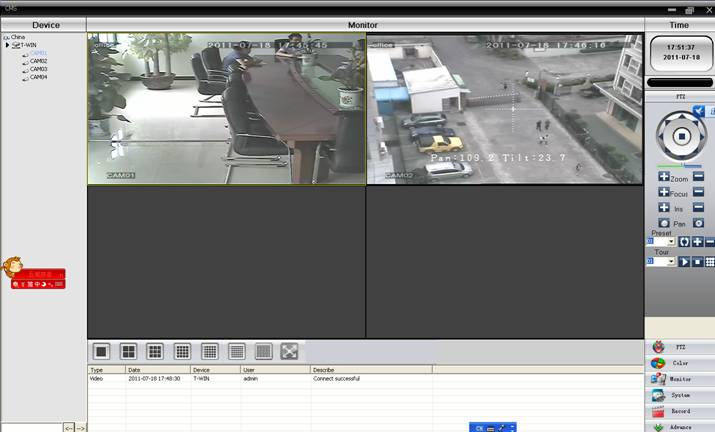

CMS Interface
