H.264 8ch DVR
Sale Points
1.2ch D1 6ch CIF real time recording
2.Audio input:8ch,Audio output:1ch
3.Alarm input:4ch,Alarm output:1ch (Optional)
4.SupportMobile phone remote view
5.Support RS485
6.Support free DDNS domain name
7.Support 2pcs HDD,unlimited for the capacity
Use the standard H

Use the standard H.264 video compression format stream lower,high quality, longer recording time, taking up less bandwidth resources

GUI OSD interface,more intuitive,easier to use for user-friendly

Support 2ch Full D1 real time + 6ch Full CIF real time recording resolution.

Dual-stream design, network remote view effects and local recording effects  parameters can be set

separately,independently of each other.

Hexaplex operation simultaneously: Preview,recording, playback,backup,network live,mobilephone


Support Multiple channel playback (Support 8CH playback simultane ously,each channel can be

enlarge to full screen)

Support Network function:one IE browser centralized monitoring and CMS Software for multiple DVR

(up to 255 DVR simultaneously)

Supports Multiple backup mode:USB flash drive,USB hard disk,USB CD/RW and network backup

Supports Built-in free DDNS domain name,with Server address: http://www.dvrcenter.com

Support Mobilephone remote view by Symbian S60V3/V5;Windows Mobile;Android

system; Iphone;Blackberry

Support alarm triggered recording will send alerts matter to the designated emails

System auto recovery to power after power reconnected, and return to the pre-power-down state




 Video Compression Format


 Video System


 Video Input/Output(BNC)

 8CH BNC input/1CH BNC output

 Audio Input/Output

 8CH audio input,1CH audio output(RCA)

 Maximum Recording Rate
(D1/HD1/ CIF,CH1&CH2 max at
 D1&HD1;CH3-CH8 at CIF)

 D1:704*480,60fps <NTSC> /704*576,50fps <PAL>
 HD1:704*240 ,60fps <NTSC> /704*288,50fps <PAL>
 CIF:352*240,240fps <NTSC> /352*288, 200fps <PAL>

 Image Quality Setting

 Supper Best,Well,Good,Medium,Normal and Bad

 Hard Disk Storage

 Support two SATA HDD, unlimited for the capacity

 Alarm Input/Output(Optional)

 4 alarm input,1 alarm output     (Optional)

 Multiplex Operation

 Live display/record/playback/backup/network transmit

 Recording Mode


 Playback Mode

 Multiple slow and rapid play speeds,manual and single-frame
 play modes,and support of drag the sliding bar to set.

 Backup Device

 USB flash disk/USB remove HDD/Network/USB DVD-RW

 Pre-alarm Recording

 Recording for 10 seconds before alarming

 Network Protocol


 Ethernet remote view

 Support remote surveillance up to 10 users simultaneously

 Log record function


 VGA Interface

 YES ,support VGA and BNC can work at the same time

 USB Mouse & IR Remote control


 Video Loss Detection


 Video Adjustable

 Hue /Saturation /Contrast /Brightness adjust

 PTZ Control

 YES,built-in RS485 port,support 17 kinds protocols

 Power Source

 DC 12V


 370(W) x 72(H) x 285(D)

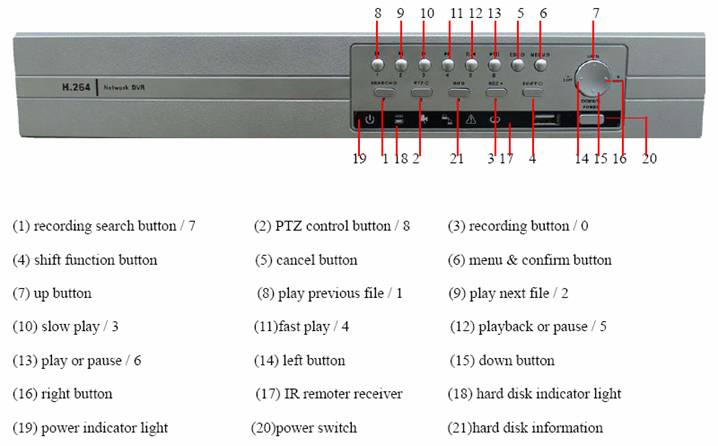

Front Panel

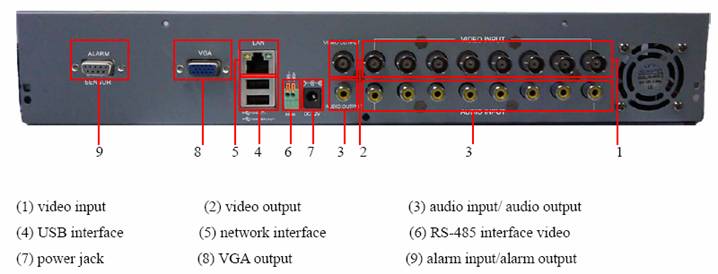

Back Panel

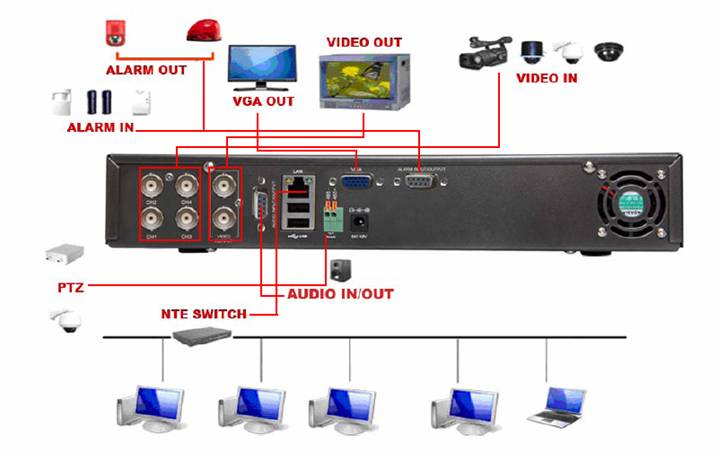

Reference Practical Product Connection Picture

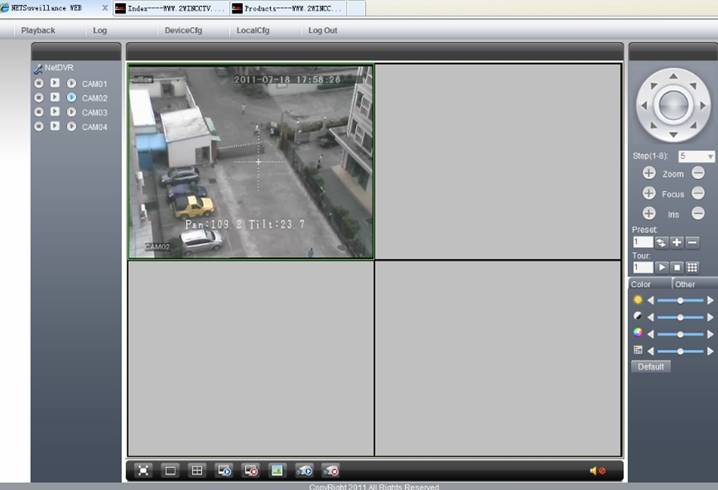

Internet Explorer Surveillance Interface

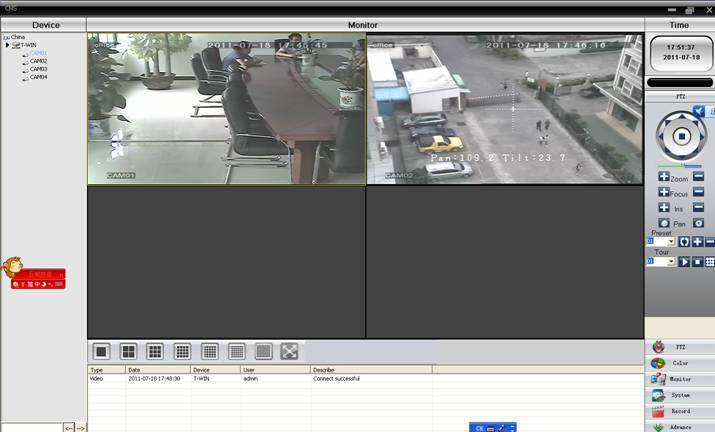

CMS Interface
