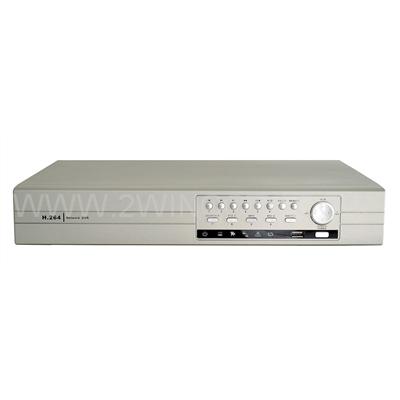

TW-DH9316
Name
16ch CIF DVR
Sale Points
1.16ch CIF real time recording
2.Audio input:4ch,Audio output:1ch
3.Alarm input:4ch,Alarm output:1ch
4.SupportMobile phone remote view
5.Support RS485
6.Support free DDNS domain name
7.Support 2pcs HDD,unlimited for the capacity
Details:
Use the standard H

Use the standard H.264 video compression format stream lower,high quality,longer recording time,

taking up less bandwidth resources

GUI OSD interface,more intuitive,easier to use for user-friendly

Dual-stream design,network remote view effects and local recording effects parameters can be

set separately,independently of each other.

Support CIF recording resolution,6 image quality adjustable

Hexaplex operation simultaneously: Preview,recording,playback,backup,network live,mobilephone view

Support Multiple channel playback at the same time(Support 16CH playback simultaneously,

each can be enlarge to full screen)

Support Network function:one IE browser centralized monitoring and CMS Software for multiple

DVR (up to 255 DVR simultaneously)

Supports Multiple backup mode:USB flash drive,USB hard disk,USB CD/RW and network backup

Supports Built-in free DDNS domain name

Support Mobilephone remote view by Symbian S60V3/V5;WindowsMobile;Android system;Iphone;Blackberry

Support alarm triggered recording will send alerts matter to the designated emails

System auto recovery to power after power reconnected,and return to the pre-power-down state



Specification



Video Compression Format

 H.264

 Video System

 NTSC / PAL

 Video Input/Output(BNC)

 16CH BNC input/1CH BNC output

 Audio Input/Output

 4CH audio input,1CH audio output(RCA)

 Maximum Recording Rate(CIF)

 CIF:352*240,480fps <NTSC> /352*288,400 fps <PAL>
 QCIF:176*120,480fps <NTSC> /176*244 ,400 fps <PAL>

 Image Quality Setting

 Supper Best,Well, Good,Medium,Normal and Bad

 Hard Disk Storage

 Support two SATA HDD, unlimited for the capacity

 Alarm Input/Output

 4 alarm input,1 alarm output

 Multiplex Operation

 Live display/record/playback/backup/network transmit

 Recording Mode

 Auto/Manual/Timer/Motion/Alarm

 Playback Mode

 Multiple slow and rapid play speeds,manual and single-frame
 play modes,and support of drag the sliding bar to set.

 Backup Device

 USB flash disk/USB remove HDD/Network/USB DVD-RW

 Pre-alarm Recording

 Recording for 10 seconds before alarming

 Network Protocol

 TCP/IPPPPOE DDNS FTPUPNPARSP and NTP

 Ethernet remote view

 Support remote surveillance up to 10 users simultaneously

 VGA Interface

 YES ,support VGA and BNC can work at the same time

 Log record function

 YES

 Video Loss Detection

 YES

 Video Adjustable

 Hue /Saturation /Contrast /Brightness adjust

 PTZ Control

 PTZ Control

 IR remote control/USB Mouse

 YES

 Power Source

 DC 12V

 Size(mm)

 370(W) x 72(H) x 285(D)

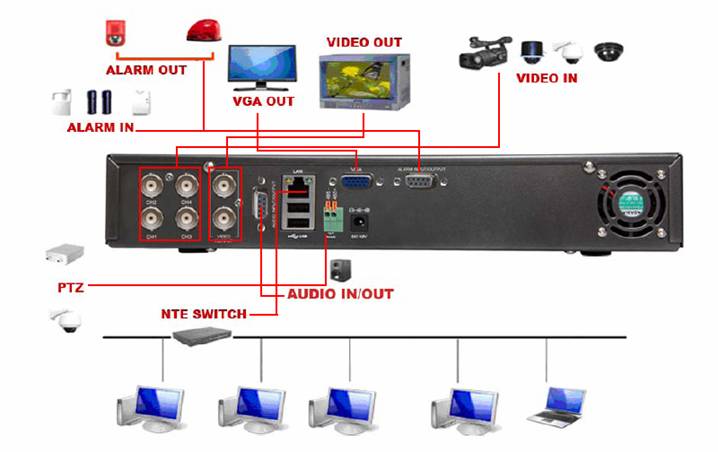

Reference Practical Product Connection Picture

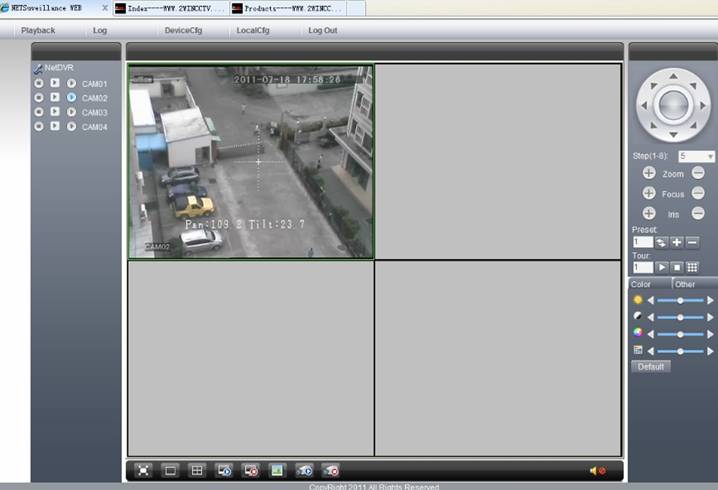

Internet Explorer Surveillance Interface

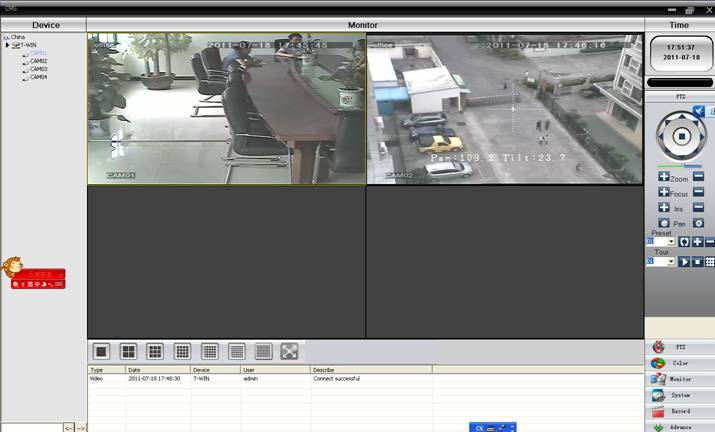

CMS Interface
