All Products  >  CCTV DVR  >  Without Screen  >  TW-DH9204

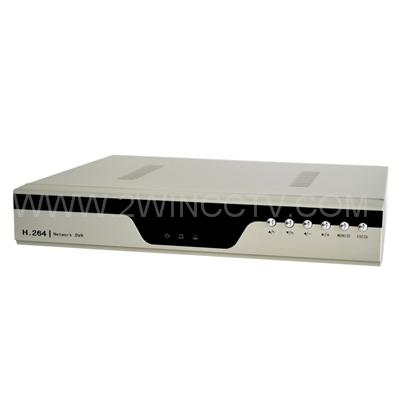

Economical 4ch D1 DVR
Sale Points
1.4ch D1 real time recording
2.Audio input:1ch,Audio output:1ch(4ch input is optional)
3.Alarm input:1ch,Alarm output:1ch
4.SupportMobile phone remote view
5.Support RS485
6.Support free DDNS domain name
7.Support 1pcs HDD,unlimited for the capacity
Use the standard H

1.Use the standard H.264 video compression format stream lower,high quality,

longer recording time, taking up less bandwidth resources

2.GUI OSD interface,more intuitive,easier to use for user-friendly

3.Support 4ch Full D1 realtime recording resolution,ahead to D1 High-Definition period.

4.Dual-stream design,network remote view effects and local recording effects parameters

can be set separately,independently of each other.

5.Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,

mobilephone view

6.Support Multiple channel playback (Support 4CH playback simultaneously, each channel

 can be enlarge to full screen)

7.Support Network function:one IE browser centralized monitoring and CMS Software for

multiple DVR (up to 255 DVR simultaneously)

8.Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play

9.Supports Built-in free DDNS domain name

10.Support Mobilephone remote view by Symbian S60V3/V5;WindowsMobile Android system;Iphone;Blackberry

11.Support alarm triggered recording will send alerts matter to the designated email.

12.System auto recovery to power after power reconnected,and return to the pre-power-down state




Video Compression Format


 Video System


 Video Input/Output(BNC)

 4CH BNC input/1CH BNC output

 Audio Input/Output

 1CH audio input,1CH audio output(RCA)

 Maximum Recording Rate
(each channel support at D1 real-time)

 D1:704*480,120fps <NTSC> /704*576,100 fps<PAL>
 HD1:704*240 ,120fps <NTSC> /704*288 ,100 fps <PAL>
 CIF:352*240 ,120fps <NTSC> /352*288,100 fps <PAL>
 QCIF:176*120,120fps <NTSC> /176*144 ,100 fps <PAL>

 Image Quality Setting

 Supper Best,Well,Good,Medium,Normal and Bad

 Hard Disk Storage

 Support one SATA HDD, unlimited for the capacity

 Alarm Input/Output

1ch input,1ch output

 Multiplex Operation

 Live display/record/playback/backup/network transmit

 Recording Mode


 Playback Mode

 Multiple slow and rapid play speeds,manual and single-frame
 play modes,and support of drag the sliding bar to set.

 Backup Device

 USB flash disk/USB remove HDD/Network

 Pre-alarm Recording

 Recording for 10 seconds before alarming

 Network Protocol


 Ethernet remote view

 Support remote surveillance up to 10 users simultaneously

 VGA Interface

 YES ,support VGA and BNC can work at the same time

 Log record function


 Video Loss Detection


 Video Adjustable

 Hue /Saturation /Contrast /Brightness adjust

 PTZ Control


 IR Remote control/USB Mouse


 Power Source

 DC 12V


 260(W) x 45(H) x 234(D)

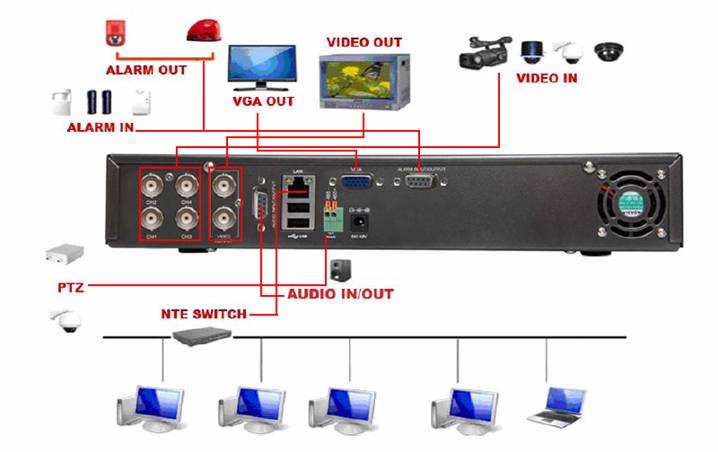

Reference Practical Product Connection Picture

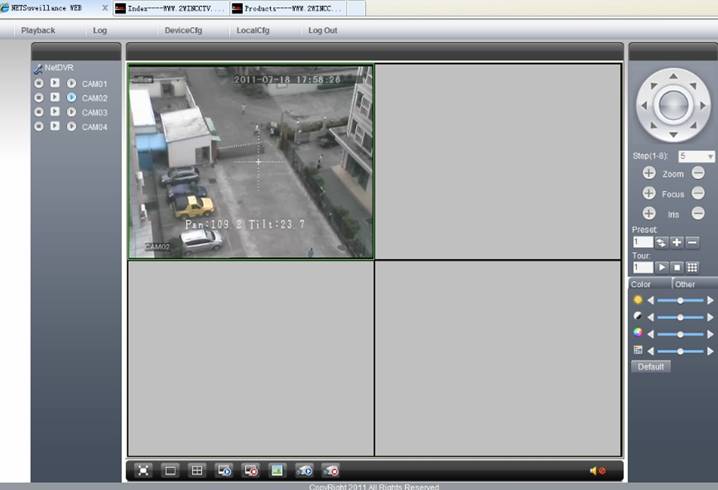

Internet Explorer Surveillance Interface

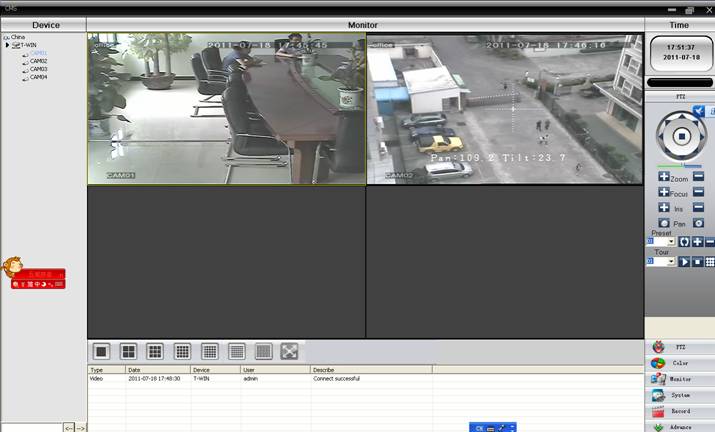

CMS Interface
