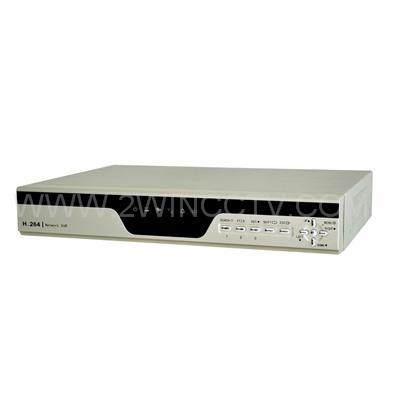

Economical 16ch DVR
Sale Points
1.16ch CIF real time recording
2.Audio input:2ch,Audio output:1ch
3.Alarm input:4ch,Alarm output:1ch
4.Support Mobile phone remote view
5.Support RS485
6.Support free DDNS domain name
7.Support 1 pcs HDD,unlimited for the capacity
Use the standard H

1.Use the standard H.264 video compression format stream lower,high quality,

longer recording time, taking up less bandwidth resources

2.GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly

3.Dual-stream design,network remote view effects and local recording effects parameters

 can be set separately,independently of each other.

4.Support CIF recording resolution,6 image quality adjustable

5.Hexaplex operation simultaneously: Preview,recording,playback,backup,network live,

mobilephone view

6.Support Multiple channel playback at the same time(Support 16CH playback simultaneously)

7.Support Network function:one IE browser centralized monitoring and CMS Software for multiple

DVR (up to 255 DVR simultaneously)

8.Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play

9.Supports Built-in free DDNS domain name,with Server address: http://www.dvrcenter.com

10.Support Mobilephone remote view by Symbian S60V3/V5;WindowsMobile;Android system;Iphone;Blackberry

11.Support alarm triggered recording will send alerts matter to the designated emails

12.System auto recovery to power after power reconnected,and return to the pre-power-down state




Video Compression Format


 Video System


 Video Input/Output(BNC)

 16CH BNC input/1CH BNC output

 Audio Input/Output

 2CH audio input,1CH audio output(RCA)

 Maximum Recording Rate(CIF)

 CIF:352*240,480 fps<NTSC> /352*288,400 fps <PAL>
 QCIF:176*120 ,480 fps <NTSC> /176*244 ,400 fps <PAL>

 Image Quality Setting

 Supper Best,Well,Good,Medium,Normal and Bad

 Hard Disk Storage

 Support one  SATA HDD, unlimited for the capacity

 Alarm Input/Output

 4 alarm input,1 alarm output

 Multiplex Operation

 Live display/record/playback/backup/network transmit

 Recording Mode


 Playback Mode

 Multiple slow and rapid play speeds,manual and single-frame
 play modes,and support of drag the sliding bar to set.

 Backup Device

 USB flash disk/USB remove HDD/Network/USB DVD-RW

 Pre-alarm Recording

 Recording for 10 seconds before alarming

 Network Protocol


 Ethernet remote view

 Support remote surveillance up to 10 users simultaneously

 VGA Interface

YES ,support VGA and BNC can work at the same time

 Log record function


 PTZ Control

 YES , built-in RS485 port,support 17 kinds protocols

 IR Remote contro/USB Mousel


 Video Loss Detection


 Video Adjustable

 Hue /Saturation /Contrast /Brightness adjust

 Power Source

 DC 12V


 325(W) x 52(H) x 230(D)

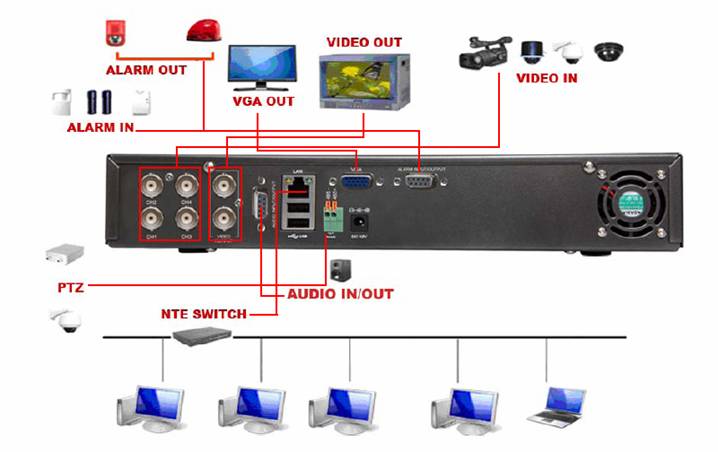

Reference Practical Product Connection Picture

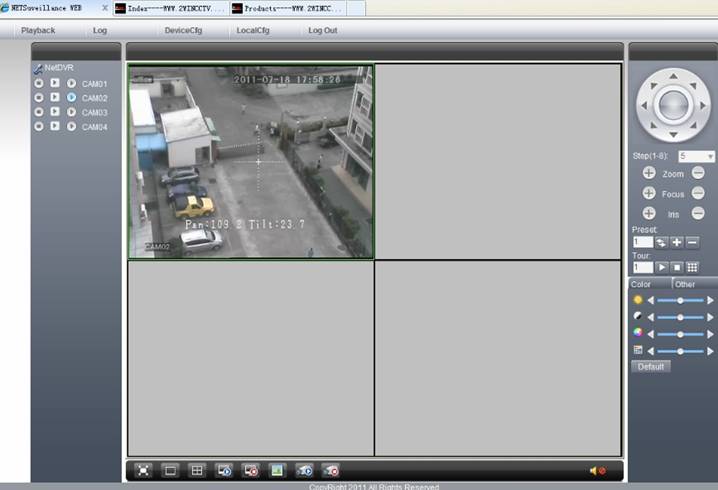

Internet Explorer Surveillance Interface

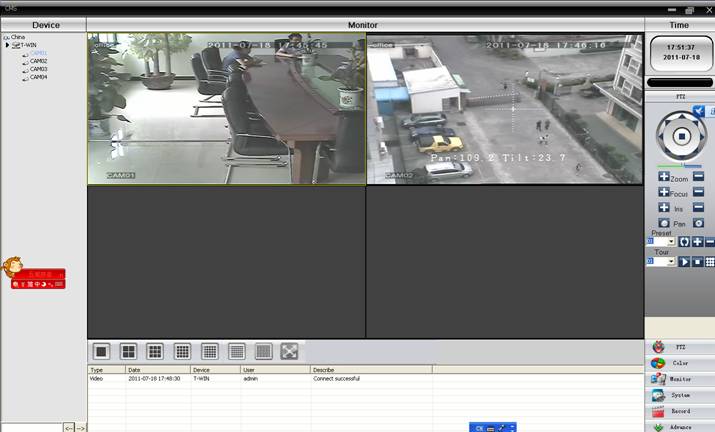

CMS Interface
