TW-DH9632F
Name
32ch H.264 DVR
Sale Points
1.32ch CIF real time recording
2.Video input:32ch,Video output:2ch
3.Audio input:8ch,Audio output:1ch
4.Alarm input:8ch,Alarm output:1ch
5.Built-in RS485,RS232 port
6.Support free DDNS domain name
7.Support 2pcs HDD,unlimited for the capacity
Details:
Use the standard H

1.Use the standard H.264 video compression format stream lower,high quality,longer recording time,

taking up less bandwidth resources

2.GUI OSD interface,more intuitive,easier to use for user-friendly

3.Support 32ch Full CIF realtime recording resolution and sd card.

4.Dual-stream design,network remote view effects and local recording effects parameters can be set

separately,independently of each other.

5.Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobilephone view

6.Support Multiple channel playback (Support 16CH playback simultaneously, each channel can be enlarge

to full screen)

7.Support Network function:one IE browser centralized monitoring and CMS Software for multiple DVR

(up to 255 DVR simultaneously)

8.Supports Built-in free DDNS domain name,with Server address: http://www.dvrcenter.com

9.Support Mobilephone remote view by Symbian S60V3/V5;WindowsMobile;Android system;Iphone;Blackberry

10.Support alarm triggered recording will send alerts matter to the designated email.

11.System auto recovery to power after power reconnected,and return to the pre-power-down state



Specification



 Video Compression Format

 H.264

 Video System

 NTSC / PAL

 Video Input/Output(BNC)

 32CH BNC input/2CH BNC output &VGA

 Audio Input/Output

 8CH audio input,1CH audio output(RCA)

 Maximum Recording Rate

 CIF:352*240,960fps <NTSC> /352*288,800 fps <PAL>
 QCIF:176*120,960fps <NTSC> /176*144,800 fps <PAL>

 Image Quality Setting

 Supper Best, Well, Good, Medium, Normal and Bad

 Hard Disk Storage

 Support  two SATA HDD, unlimited for the capacity

 HDMI Interface

 YES

 Alarm Input/Output

 8CH alarm input,1CH alarm output

 Multiplex Operation

 Live display/record/playback/backup/network transmit /mobile phone view

 Recording Mode

 Auto/Manual/Timer/Motion/Alarm

 Playback Mode

 Multiple slow and rapid play speeds, manual and single- frame play modes,
 and support of drag the sliding bar to set.

 Backup Device

 USB flash disk/USB remove HDD/Network/SATA DVR-RW /SD card

 Pre-alarm Recording

 Recording for 10 seconds before alarming

 Network Protocol

 TCP/IP,DHCP,DNS,DDNS,PPPoE,FTP,UPNP,WIFI,3G,E-mail,IP rights and NTP

 Ethernet remote view

 Support remote surveillance up to 10 users simultaneously

 VGA Interface

 YES ,support VGA and BNC can work at the same time(option HDMI)

 Log record function

 YES

 Video Adjustable

 Hue /Saturation /Contrast /Brightness adjust

 Video Loss Detection

 YES

 IR Remote control &USB Mouse

 YES

 PTZ Control

 YES,built-in RS485,support 17 kinds protocols

 RS232 interface

 YES,built-in RS-232 port

 Power Source

 DC 12V

 Size(mm)

 430(W) x 97(H) x 370(D)

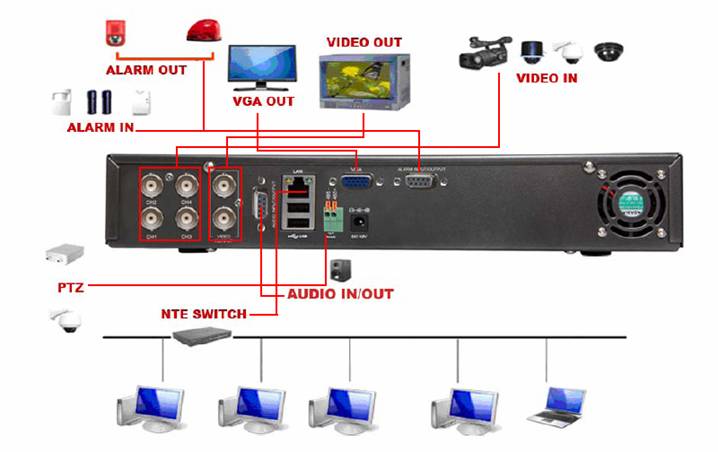

Reference Practical Product Connection Picture

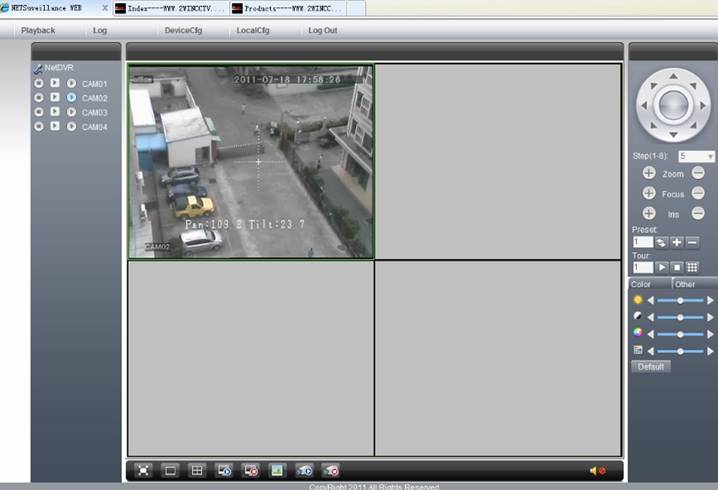

Internet Explorer Surveillance Interface

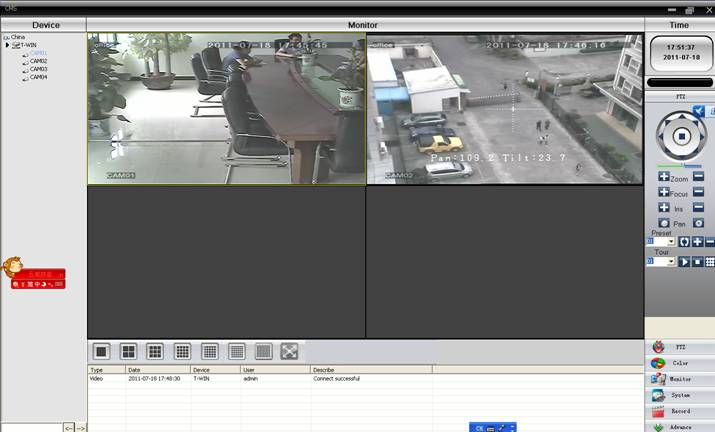

CMS Interface
