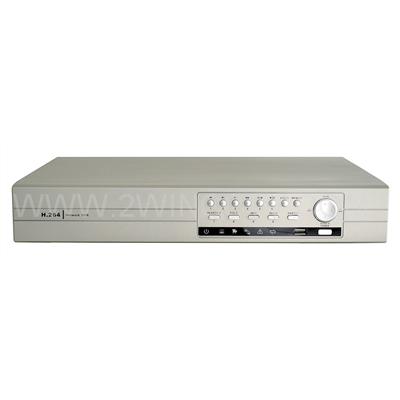

16ch H.264 DVR
Sale Points
1.4ch D1,12ch CIF real time recording
2.Video input:16ch,Video output:1ch
3.Audio input:16ch,Audio output:1ch
4.Alarm input:8ch,Alarm output:1ch
6.Built-in RS485,RS232 port
7.Support free DDNS domain name
8.Support 2pcs HDD,unlimited for the capacity
Use the standard H

1.Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking

up less bandwidth resources

2.GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly

3.Support D1HD1CIF recording resolution6 image quality adjustable

4.Support 4ch Full D1 + 12ch Full CIF realtime recording resolution

5.Dual-stream design,network remote view effects and local recording effects parameters can be set

separately,independently of each other.

6.Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobilephone view

7.Multiple record mode:Autotimermotion recording mode

8.Recording playback support:Normal playSpeed playFast back playManual single-frame slow play

9.Support drag the progress bar can be targeted playback time directly

10.Support Multiple channel playback (Support max 16CH playback simultaneously, each channel can be

enlarge to full screen)

11.Support Network function:one IE browser centralized monitoring and CMS Software for multiple DVR (up

 to 255 DVR simultaneously)

12.Support TCP/IP,DHCP,DNS,DDNS,PPPoE,FTP,UPNP,E-mail,IP rights,IP search and NTP network


13.Supports remote surveillance up to 10 users simultaneously via the Enternet Explorer web browser

14.Support more than 17 kinds protocol of the PTZ control

15.Supports Multiple backup mode: USB flash drive,USB hard disk,USB DVR-RW and network backup

16.Support pre-alarm recording (before 10 sec),not lose any suspicious screen

17.Support 2 SATA HDD, unlimited for the capacity

18.Support 16ch audio input

19.Support Mobilephone remote view by Symbian;WindowsMobile;Android system;Iphone;Blackberry

20.Support High-Definition VGA output(VGA and BNC can work at the same time)

21.Support IR remoter controller

22.Support alarm triggered recording will send alerts matter to the designated email.

23.System auto recovery to power after power reconnected,and return to the pre-power-down state

Reference Practical Product Connection Picture



Video Compression Format


Video System




Video Input(BNC)

16CH BNC input(composite video signal 1Vp-p 75Ω BNC)

Video Output(BNC)

1CH BNC output

Audio Input/Output

16CH audio input,1CH audio output(RCA)

Maximum Recording Rate(4CH D1+12CH CIF recording)

D1:704×480 pixels with 208 IPS <NTSC> /704×576 pixels with 176 IPS <PAL> HD1:704×240 pixels with 208 IPS <NTSC> /704×288 pixels with 176 IPS <PAL>

CIF:352×240 pixels with 480 IPS <NTSC> /352×288 pixels with 400 IPS <PAL>

QCIF:176×120 pixels with 480 IPS <NTSC> /176×144 pixels with 400 IPS <PAL>

Image Quality Setting

Supper Best,Well,Good,Medium,Normal and Bad

Hard Disk Storage

Support 2 SATA HDD,unlimited for the capacity

Loop out


Alarm Input/Output

8CH alarm input,1CH alarm output

Multiplex Operation

Live display/record/playback/backup/network transmit

Recording Mode


Playback Mode

Multiple slow and rapid play speeds, manual and single-frame play modes, and support of drag the sliding bar to set.


Backup Device

USB flash drive, USB hard disk, USB DVR-RM and network backup

Pre-alarm Recording

Recording for 10 seconds before alarming

Network Protocol

TCP/IP, DHCP, DNS, DDNS, PPPoE, FTP,UPNP,E-mail, IP rights and NTP

Ethernet remote view

Support remote surveillance up to 10 users simultaneously

CMS software


Mobilephone View


Electronic zoom


VGA Interface

YES   HDMI port is optional

Log record function


Image Tour


IR Remote control& USB Mouse


Video Loss Detection


Video Adjustable

Hue /Saturation /Contrast /Brightness adjust

PTZ Control

YES,built-in RS-485 port

RS232 interface

YES,built-in RS-232 port

Power Source

DC 12V

Key Lock(Password Protection)


Power-down recovery function



370(W) x 72(H) x285(D)


Internet Explorer Surveillance Interface



CMS Interface



400 60
