All Products  >  Special Camera  >  TW-PV105

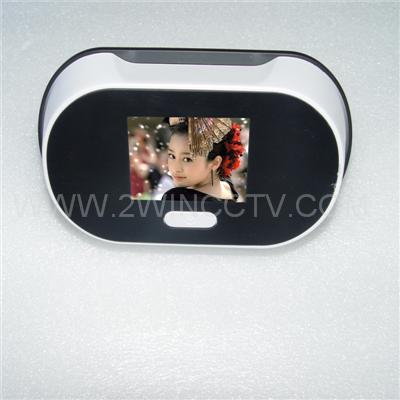

Digital peephole viewer
Sale Points
1.2.4"TFT LCD
3.View Angle: 60 Degree
4.Power by 2pcs AA batteries
5.workable door thickness: during 45mm-60mm.

1. High resolution image: 0.3M pixel sensor, 2.4” LCD display.

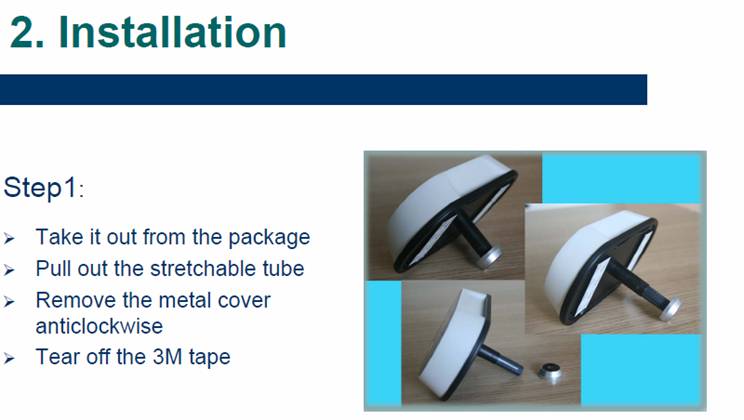

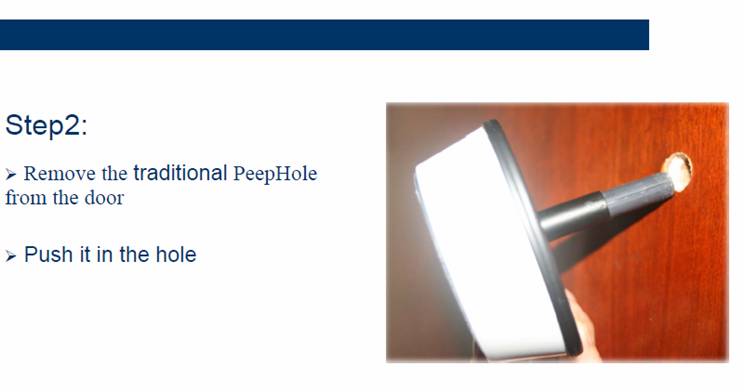

2. Easy to DIY: Install simply and quickly within 5mins, you can do it yourself, so easy!

3. Much better than traditional Peep Hole: Really and clearly show the outdoor, no twisty such as the traditional.

4. No limit to user: No matter children and older, anyone can see the outdoor easily, especially for the older with poor eyesight.

5. Less power consumption: Only need 2pcs AA battery, around 2000 times on/off.

6. Wider visual angle: 65°visual angle, wider visual angle for the outdoor.

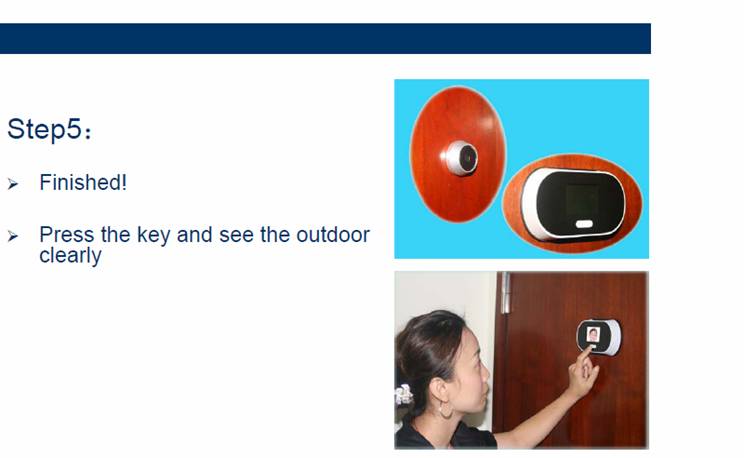

7. Simple and safe operationOne touch to show the outdoor easily, safely for anti-spy



Sensor0.3M pixel

Power life2000 times on/off

LCD display2.4 inch

Panel resolution320*240

Parameter14 mm

Visual angle60°

Power consumption600 mw

Battery type2pcs AA battery

Door thickness45mm~60mm

Size146 *90 * 30 mm

Net weight130 g













400 60
