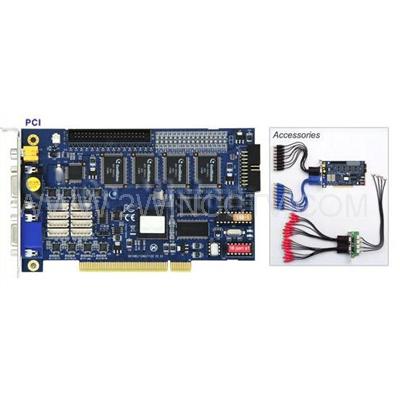

Geovision DVR CARD GV-1480
Geovision DVR CARD GV-1480
Spec:
DVI:
|
Input Type
|
DVI : DVI x 2
|
|
(one for 16 video, one
for 16 audio)
|
|
Video Input(s)
|
16 Channel
|
|
Audio Input(s)
|
16 Channel
|
|
Recording Rate
|
480 fps (NTSC), 400fps
(PAL).
|
|
Display Rate
|
480 fps (NTSC), 400fps
(PAL).
|
|
Video Resolution
|
Full D1, Half D1, CIF
|
|
Compression Format
|
Geo MPEG4, Geo MPEG4
(ASP),
|
|
Geo H264, Geo H264 V2
|
|
OS Supported
|
Windows2000 / 2003 /
XP / Vista
|
|
Software:V8.2
(Language: English/Portuguese/Spanish)
|
D-TYPE:
|
Input Type
|
D-Type: DB15 x 2 (for video)
;
|
|
DB9 x 2 (extension
card for audio)
|
|
Video Input(s)
|
16 Channel
|
|
Audio Input(s)
|
16 Channel
|
|
TV Output
|
RCA Connector x 1
|
|
Recording Rate
|
480 fps (NTSC), 400fps
(PAL).
|
|
Display Rate
|
480 fps (NTSC), 400fps
(PAL).
|
|
Video Resolution
|
Full D1, Half D1, CIF
|
|
Compression Format
|
Geo MPEG4, Geo MPEG4
(ASP),
|
|
Geo H264, Geo H264 V2
|
|
OS Supported
|
Windows2000 / 2003 /
XP / Vista
|
|
Software:V8.2
(Language: English/Portuguese/Spanish)
|

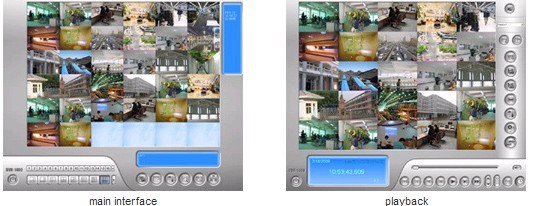

Software:
Package :
Package
Size:23.3X14X4CM,
1PCSweight：0.56KG,
Package
Size:49X35X32CM,
32PCS weight：18.8KG
