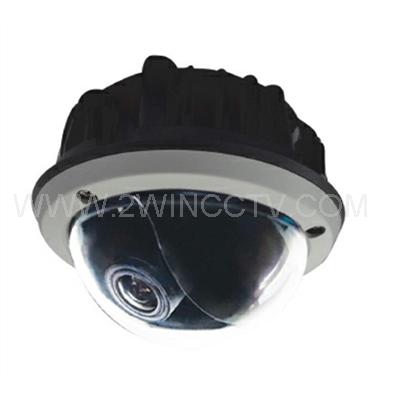

TW-CD327-PX Series
Name
WDR 690TVL IP66 Dome
Sale Points
1.IP 66 Weather Proof
2.Power Input : 12V DC\DC(24V AC is optional)
3.4-9MM Fixl Iris Lens(Auto Iris Lens optional)
4.2.8-12MM Fixl Iris Lens(Auto Iris Lens optional)
5.OSD
6.Size:Ф136*107MM
7.Weight :700g
Details:
PIXIM WDR CAMERA

PIXIM WDR CAMERA

Features:

- Super wide dynamic range 120dB;
- Wall-embedded type installation;
- Hight resolution up to 690 HTVL Effective*;
- IP-66 Weather-proof standard;
- OSD menu;
- DC12V Duplicate power design.

Spec :

Sensor

Sensor

1/3 DPS Sensor

Menu Operation

Video Format

PAL/NTSC

Resolution

690 HTVL Effective*

Mini.Illumination

0.1 lux min illumination (f/1.2, 50 IRE, 30 fps, CMY)

S/N Ratio

up to 50dB max (Y signal, AGC off)

Ess Modes

1x~32 x

AGC

Programmable up to 50dB

WDR

120 db(max)

Iris Control

Electronic iris/Auto iris lens (DC drive)

Extended Slow Shutter

2x / 4x / 8x / 16x / 32x

Noise Reduction

3D Motion Adaptive

Digital Zoom

8x

White Balance

ATW, AWB

Low Light Mode

Low speed shutter,AGC,Sense up B/W Low Speed Shutter .Image

Day/Night

True Day/Night, Soft Day/Night (B/W)

Sync Mode

Internal/Line Lock

Power

Voltage

12V DC

DC12V/AC24V

12V DC

DC12V/AC24V

Current

≤150mA

Vide output

1.0Vp-p/75 Ω Composite

Lens

4-9mm

4-9mm Auto
Iris Lens

2.8-12mm

2.8-12mm Auto
Iris Lens

Operating Temp.

-1050

Storage Temp.

-2060

Dimension

Φ148*112mm

Weight

700g
