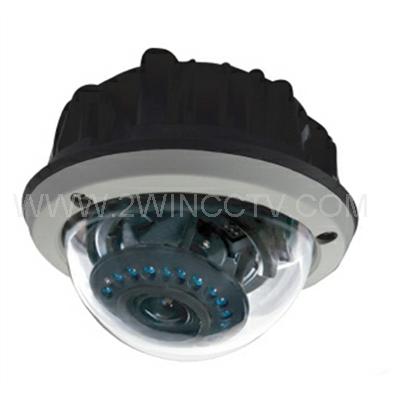

PIXIM WDR CAMERA
PIXIM WDR CAMERA
Features:
- Super wide dynamic range 120dB;
- Wall-embedded type installation;
- Hight resolution up to 690 HTVL Effective*;
- IP-66 Weather-proof standard;
- 20Meters IR Range;
- OSD menu;
- DC12V/AC24V Duplicate power design;
- IR-CUT.
Spec :
|
Sensor
|
Sensor
|
1/3
DPS Sensor
|
|
Menu
Operation
|
Video
Format
|
PAL/NTSC
|
|
Resolution
|
690
HTVL Effective*
|
|
Mini.Illumination
|
0 Lux
IR ON
|
|
S/N
Ratio
|
up to
50dB max (Y signal, AGC off)
|
|
Ess
Modes
|
1x~32
x
|
|
AGC
|
Programmable
up to 50dB
|
|
WDR
|
120
db(max)
|
|
Iris
Control
|
Electronic
iris/Auto iris lens (DC drive)
|
|
Extended
Slow Shutter
|
2x /
4x / 8x / 16x / 32x
|
|
Noise
Reduction
|
3D
Motion Adaptive
|
|
Digital
Zoom
|
8x
|
|
White
Balance
|
ATW,
AWB
|
|
Low
Light Mode
|
Low
speed shutter,AGC,Sense up B/W Low Speed Shutter .Image
|
|
Day/Night
|
True
Day/Night, Soft Day/Night (B/W)
|
|
Sync
Mode
|
Internal/Line
Lock
|
|
Power
|
Voltage
|
12V
DC
|
24V
AC/12V DC
|
12V
DC
|
24V
AC/12V DC
|
|
Current
|
≤150mA(IR
OFF) ≤150mA(IR ON)
|
|
Vide
output
|
1.0Vp-p/75
Ω Composite
|
|
Lens
|
4-9mm Lens
|
4-9mm Auto
Iris Lens
|
2.8-12mm Lens
|
2.8-12mm Auto
Iris Lens
|
|
IR-Range
|
20Meters
|
|
Operating
Temp.
|
-10℃～50℃
|
|
Storage
Temp.
|
-20℃～60℃
|
|
Dimension
|
Φ148*112mm
|
|
Weight
|
700g
|
