TW-CW131-PX
Name

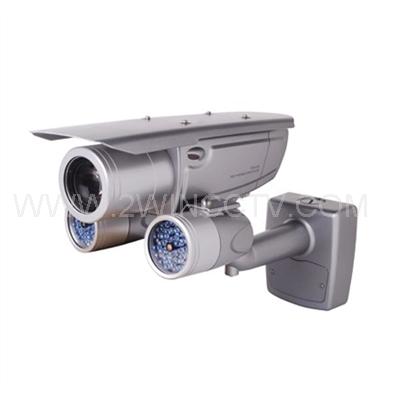

100M IP66 WDR 690TVL Camera
Sale Points
1.100 Meters IR Range
2.IP-66 Weather-Proof
3.Power Input : 24V AC
4.5-50MM Auto Iris Lens
5.OSD / IR-CUT
Details:
PIXIM WDR CAMERA

PIXIM WDR CAMERA

Features:

- Super wide dynamic range 120dB;
- 5-50MM Lens;
- 100Meters IR Range;
- Hight resolution up to 690 HTVL Effective*;
- IP-66 Weather-proof standard;
- OSD menu;
- AC24V Duplicate power design.

Spec :

Sensor

Sensor

1/3 DPS Sensor

Menu Operation

Video Format

PAL/NTSC

Resolution

690 HTVL Effective*

Mini.Illumination

0 Lux IR ON

S/N Ratio

up to 50dB max (Y signal, AGC off)

Ess Modes

1x32 x

AGC

Programmable up to 50dB

WDR

120 db(max)

Iris Control

Electronic iris/Auto iris lens (DC drive)

Extended Slow Shutter

2x / 4x / 8x / 16x / 32x

Noise Reduction

3D Motion Adaptive

Digital Zoom

8x

White Balance

ATW, AWB

Low Light Mode

Low speed shutter,AGC,Sense up B/W Low Speed Shutter .Image

Day/Night

True Day/Night, Soft Day/Night (B/W)

Sync Mode

Internal/Line Lock

Power

Voltage

24V AC

Current

≤150mA(IR OFF) ≤1000mA(IR ON)

Vide output

1.0Vp-p/75 Ω Composite

Lens

5-50mm

5-50mm Auto Iris Lens (High-quality)

Operating Temp.

-1050

Storage Temp.

-2060

Dimension

390*245*145mm

Weight

2600g
