TW-CD019
Name

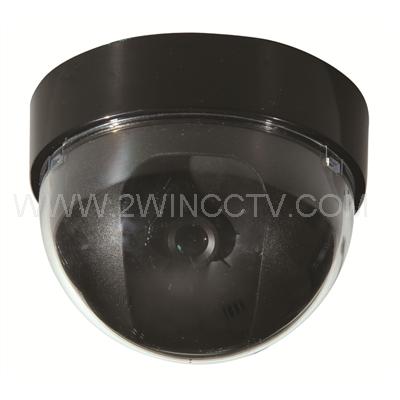

Plastic CCTV Dome Camera
Sale Points
Plastic Dome Camera
Board Lens 3.6mm/F2.0
Details:
Plastic Dome Camera Board Lens

Plastic Dome Camera Board Lens

Lens:3.6mm/F2.0

Size:
88 x 58(H) mm

Weight: 300g



Image Sensor

1/3" SONY Super HAD CCD II

1/3" SHARP

1/3" SONY Super HAD CCD II

1/3" SHARP

1/3" SONY

1/3" CMOS

Horizontal Resolution

NTSC:976(H)×494(V) PAL:976(H)x582(V)

700TVL, Low Illumination, DWDR, OSD, DNR

650TVL, Low Illumination, DWDR, OSD, DNR

600TVL, Low Illumination

500TVL, Low Illumination

Color 1/3" HDIS 700TVL, with IR-CUT

Pixels

NTSC:976(H)×494(V),
PAL:976(H)x582(V )

NTSC:768(H)×494(V),
PAL:752(H)x582(V)

PAL:752(H)×582(V),
NTSC:768(H)×494(V)

PAL:500(H)×582(V)
NTSC:510(H)×492(V)

728(H)×488(V)

TV System

PAL/NTSC

Lens

Board Lens 3.6mm/F2.0

Sync System

Internal

Usable Illumination

0.001Lux/F2.0

0.0005Lux/F2.0

S/N Ratio

≥115dB (AGC OFF)

≥115dB (AGC OFF)

≥52dB (AGC OFF)

≥52dB (AGC OFF)

≥48dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10 ~ +50 RH95% Max

Storage  Temperature

-20 ~ +60 RH95% Max

White Balance

Auto

Power Source

DC12V 150mA

Dimension

88 x 58(H) mm

Package

46*39*38mm 50PCS/CTN

Weight

300g
