All Products  >  CCTV CAMERA  >  Indoor Zoom & BOX  >  TW-CD342

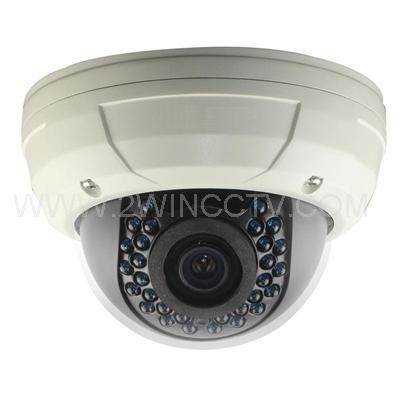

TW-CD342
Name
Outdoor Dome Camera Wall Mount Bracket
Sale Points
3-Axis Vandalproof Dome Camera
IR LED: ¢5X30PCS
IR range: 25M
2.8-12mm Manual Zoom Lens
(2M Pixels)
Details:
Vandalproof Dome Camera

Vandalproof Dome Camera

IR LED:
5X30PCS IR range: 25M

2.8-12mm Manual Zoom Lens (2M Pixels)

With bracket add USD5

Size:
135x 110(H) mm

Weight: 1200g



Image Sensor

1/3" SONY

1/3" SHARP

1/3" SONY

1/3" SHARP

1/3" SONY

1/3" CMOS

Horizontal Resolution

700TVL, Low Illumination, Real WDR, OSD, 3D NR, UTC Effio-P

700TVL, Low Illumination, Super WDR, 3D NR, Demist, SLR, Sense-up, UTC

700TVL, Low Illumination, DWDR, OSD, DNR, UTC Effio-E

700TVL, Low Illumination, DWDR, OSD, DNR

650TVL, Low Illumination, DWDR, OSD, DNR

600TVL, Low Illumination

500TVL, Low Illumination

700TV Lines Low Illumination

Pixels

NTSC:976(H)×494(V),
PAL:976(H)x582(V )

N:768(H)×494(V,
P:752(H)x582(V)

P:752(H)×582(V)
N:768(H)×494(V)

P:500(H)×582(V)
N:510(H)×492(V)

728(H)×488(V)

TV System

PAL/NTSC

IR range

25M

Lens

2.8-12mm Manual Zoom Lens (2M Pixels)

IR LED

5X30PCS

Sync System

Internal

Usable Illumination

0.001Lux/F2.0

0.01Lux/F2.0

0.001Lux/F2.0

S/N Ratio

≥52dB (AGC OFF)

≥48dB (AGC OFF)

≥46dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10 ~ +50 RH95% Max

Storage  Temperature

-20 ~ +60 RH95% Max

White Balance

Auto

Power Source

DC12V 350mA

Dimension

135x 110(H) mm

Package

55*42*42mm, 10PCS/CTN

Weight

1.2Kg
