All Products  >  CCTV CAMERA  >  Hidden & Mini & IR  >  TW-CM415

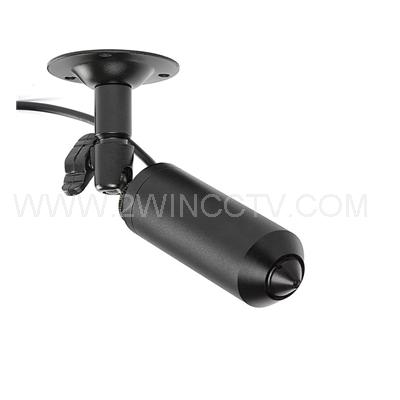

TW-CM415
Name
Pinhole Lens Bullet Cameras
Sale Points
3.7mm Taper Pinhole Lens
Details:
Lens:3

Lens:3.7mm Taper Pinhole Lens


Dimension:
20 x 62(H) mm


Weight:200g



Image Sensor

Color 1/3" SONY

1/3" SONY ICX639BK CCD

Horizontal Resolution

480TVL, Low Illumination

650TVL, Low Illumination, DWDR, OSD, DNR

TV System

PAL/NTSC

Lens

3.7mm Taper Pinhole Lens

Sync System

Internal

Usable Illumination

0.0005Lux/F2.0

S/N Ratio

≥48dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10 ~ +50 RH95% Max

Storage  Temperature

-20 ~ +60 RH95% Max

White Balance

Auto

Power Source

DC12V 300mA

Dimension

20 x 62(H) mm

Weight

200g
