Product Guide
All Products  >  CCTV CAMERA  >  New SDI HD Camera  >  TW-SD911

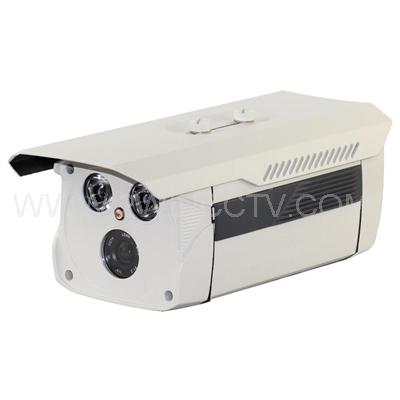

TW-SD911
Name
40M 2.1Megapixel HD SDI Camera
Sale Points
1/3" Sony 2.1Megapixel CMOS Sensor ; HD-SDI(1080P@25fps/30fps);
DNR(Digital Noise Reduction)
Cable Through Bracket
Details:
IR LED: ¢42X2PCS IR range: 40M

IR LED: 42X2PCS IR range: 40M

CS Lens 8mm/F2.0 (3M Pixels)

Water resistance: IP66

Size: 212(W) x 93(H) x 110(D)mm

Weight:1.5kg



Image Sensor

1/3" Sony 2.1Megapixel CMOS Sensor

Scanning System

Progressive Scan

S/N Ratio

More than 50dB (AGC Off)

Video Output Mode

1080P(1920 X 1080)

Video Output Level

HD-SDI /1.0 Vp-p (75ΩComposite)

Lens

CS 8mm lens (3M Pixels)

Min. Illumination

0.01Lux

OSD

Built-in

Electronic Shutter

Auto/FLK/1/25,30sec ~ 1/50000sec

Communication

RS-485[Baud Rate:240038400]

S/N Ratio

≥48dB (AGC OFF)≥52dB (AGC OFF)≥115dB (AGC OFF)

Protocol

Pelco-D

Voltage/Current

DC12V+10% / 250mA

Operating temperature

-10°~ +50°

Dimension (mm)

212(W) x 93(H) x 110(D)mm

Weight (kg)

1500g
