Product Guide
All Products  >  CCTV CAMERA  >  New SDI HD Camera  >  TW-SD913
TW-SD913
Name

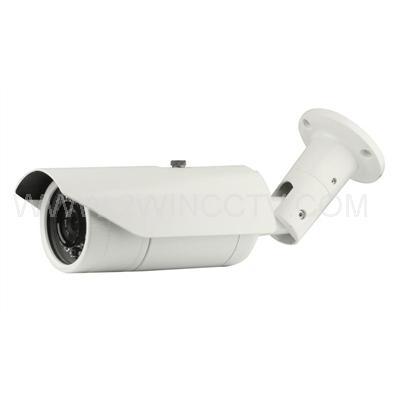

40M Full HD 1080P CCTV Camera
Sale Points
1/3" Sony 2.1Megapixel CMOS Sensor;
HD-SDI(1080P@25fps/30fps);
DNR(Digital Noise Reduction)
Cable Through Bracket
Details:
*IR LED: ¢8X36PCS IR range: 50M

*IR LED: 8X36PCS IR range: 50M


*CS 8mm lens(3M Pixels)


*Water resistance: IP66


*3-Axis cable built-in bracket


*DC12V/AC24V double voltage add USD4


*Size: 290W)x92(H)x80(D)mm Weight: 1.85kg



Image Sensor

1/3" Sony 2.1Megapixel CMOS Sensor

Scanning System

Progressive Scan

S/N Ratio

More than 50dB (AGC Off)

Video Output Mode

1080P(1920 X 1080)

Video Output Level

HD-SDI /1.0 Vp-p (75ΩComposite)

Lens

CS 8mm lens(3M Pixels)

Min. Illumination

0.01Lux

OSD

Built-in

Electronic Shutter

Auto/FLK/1/25,30sec ~ 1/50000sec

Communication

RS-485[Baud Rate:240038400]

S/N Ratio

≥48dB (AGC OFF)≥52dB (AGC OFF)≥115dB (AGC OFF)

Protocol

Pelco-D

Voltage/Current

DC12V+10% / 250mA

Operating temperature

-10°~ +50°

Dimension (mm)

290W)x92(H)x80(D)mm

Weight (kg)

1.85kg





400 60
