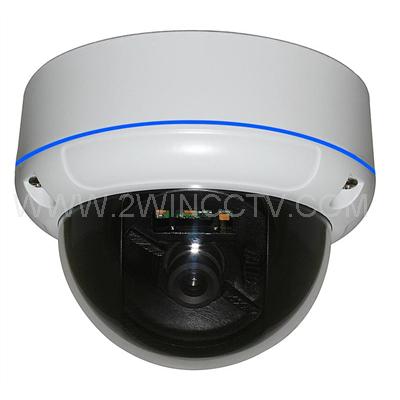

Vandalproof Dome Camera
Vandalproof Dome Camera
2.8-12mm Manual Zoom Lens (3M Pixels)
Size: ￠142x 100(H) mm
Weight: 0.85kg
|
Image Sensor
|
1/3" Sony 2.1Megapixel CMOS Sensor
|
|
Scanning System
|
Progressive Scan
|
|
S/N Ratio
|
More than 50dB (AGC Off)
|
|
Video Output Mode
|
1080P(1920 X 1080)
|
|
Video Output Level
|
HD-SDI /1.0 Vp-p (75Ω，Composite)
|
|
Lens
|
2.8-12mm Manual Zoom Lens (3M Pixels)
|
|
Min. Illumination
|
0.01Lux
|
|
OSD
|
Built-in
|
|
Electronic Shutter
|
Auto/FLK/1/25,30sec ~ 1/50000sec
|
|
Communication
|
RS-485[Baud Rate:2400～38400]
|
|
S/N Ratio
|
≥48dB (AGC OFF)≥52dB (AGC OFF)≥115dB (AGC OFF)
|
|
Protocol
|
Pelco-D
|
|
Voltage/Current
|
DC12V+10% / 250mA
|
|
Operating temperature
|
-10°~ +50°
|
|
Dimension (mm)
|
￠142x 110(H) mm
|
|
Weight (kg)
|
0.85kg
|
