Image Sensor

1/3" SONY

1/3" SONY

1/3" SHARP

1/3" SONY

1/3" SHARP

1/3" SONY

1/3" HDIS

Horizontal Resolution

960H, 700TVL, Low Illumination, Super WDR, 3D NR, Demist, SLR, Sense-up, UTC

960H, 700TVL, Low Illumination, DWDR, OSD, DNR, UTC Effio-E

960H, 700TVL, Low Illumination

650TVL, Low Illumination, DWDR, OSD, DNR

600TVL, Low Illumination

500TVL, Low Illumination

700TVL, with IR-CUT

Pixels

NTSC:976(H)×494(V),
PAL:976(H)x582(V )

NTSC:768(H)×494(V),
PAL:752(H)x582(V)

PAL:752(H)×582(V),
NTSC:768(H)×494(V)

PAL:500(H)×582(V)
NTSC:510(H)×492(V)

728(H)×488(V)

TV System

PAL/NTSC

IR LED

￠5X36PCS

IR Series Distance

30M

Lens

Board Lens 3.6mm/F2.0

Sync System

Internal

Usable Illumination

0.001Lux/F2.0

0.01Lux/F2.0

0.001Lux/F1.2

S/N Ratio

≥52dB (AGC OFF)

≥52dB (AGC OFF)

≥46dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10℃ ~ +50℃ RH95% Max

Storage  Temperature

-20℃ ~ +60℃ RH95% Max

White Balance

Auto

Power Source

DC12V 300mA

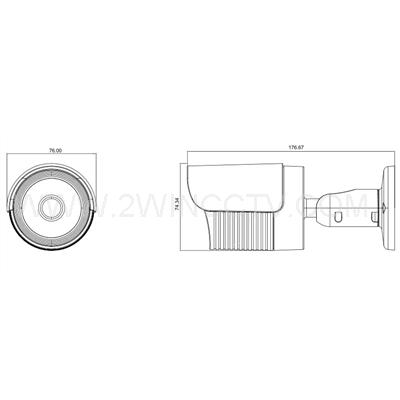

Dimension

177(W) x 76(H) x 74(D)mm

Package

550x420x420mm 40PCS/CTN

Weight

700g
