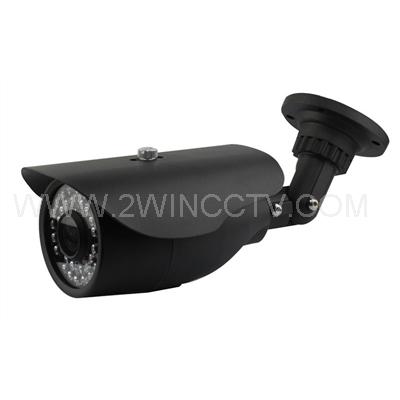

TW-CW064
Name
25M 800TVL Low Illumination Camera
Sale Points
IR LED: ¢5X30PCS
IR range:25M
Board Lens 3.6mm/F2.0
Water resistance:IP66
3-Axis cable built-in bracket
Details:
IR LED: ¢5X30PCS IR range:25M

IR LED: 5X30PCS IR range:25M

Board Lens 3.6mm/F2.0

Water resistance: IP66 3-Axis cable built-in bracket

Size: 196(W) x 89(H) x 75(D)mm

Weight: 880G



Image Sensor

1/3" CMOS

1/3" SONY

1/3" SHARP

1/3" SONY

1/3" SHARP

1/3" SONY

1/3" CMOS

Horizontal Resolution

Color 1/3" HDIS 700TVL, with IR-CUT

700TVL, Low Illumination, DWDR, OSD, DNR, UTC Effio-E

700TVL, Low Illumination, DWDR, OSD, DNR

650TVL, Low Illumination, DWDR, OSD, DNR

600TVL, Low Illumination

500TVL, Low Illumination

960H, 800TVL, With IR-CUT

Pixels

728(H)×488(V)

NTSC:976(H)×494(V),
PAL:976(H)x582(V )

NTSC:768(H)×494(V),
PAL:752(H)x582(V)

PAL:752(H)×582(V),
NTSC:768(H)×494(V)

PAL:500(H)×582(V)
NTSC:510(H)×492(V)

976(H)×496(V

TV System

PAL/NTSC

IR LED

5X30PCS

IR Series Distance

25M

Lens

CS Lens 3.6mm/F2.0

Sync System

Internal

Internal, Negative sync

Usable Illumination

0.001Lux/F2.0

0.01Lux/F2.0

0.01Lux /F1.2

S/N Ratio

≥46dB (AGC OFF)

≥52dB (AGC OFF)

≥48dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10 ~ +50 RH95% Max

Storage  Temperature

-20 ~ +60 RH95% Max

-30~+60 RH95% MAX

White Balance

Auto

Power Source

DC12V 500mA

DC12V (+/-10%)/400mA

Dimension

196(W) x 89(H) x 75(D)mm

Package

53*39*37mm 18PCS/CTN

Weight

880g
