Product Guide
All Products  >  CCTV CAMERA  >  Motor Zoom Camera  >  TW-CZ504

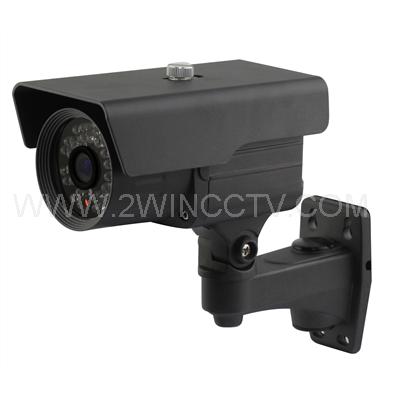

TW-CZ504
Name
IP66 700TVL Motor Zoom Cameras
Sale Points
IR LED: ¢5X72PCS
IR range: 60M
2.8-12mm Motor Zoom Lens
(2M Pixels)
Controlled by RS485
Water resistance: IP66
Details:
IR LED: ¢5X72PCS IR range: 60M

IR LED: 5X72PCS IR range: 60M

2.8-12mm Motor Zoom Lens (2M Pixels)

Controlled by RS485

Water resistance: IP66

3-Axis cable built-in bracket

Size: 315W)x125(H)x120(D)mm

Weight: 1.8kg



Image Sensor

1/3" SONY

Horizontal Resolution

700TVL, Low Illumination, DWDR, OSD, DNR, UTC Effio-E

Pixels

NTSC:976(H)×494(V),PAL:976(H)x582(V )

TV System

PAL/NTSC

IR Series Distance

60M

IR LED

5X72PCS

Lens

2.8-12mm Motor Zoom Lens (2M Pixels)

Sync System

Internal

Usable Illumination

0.001Lux/F2.0

S/N Ratio

≥52dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10 ~ +50 RH95% Max

Storage  Temperature

-20 ~ +60 RH95% Max

White Balance

Auto

Power Source

DC12V 550mA

Dimension

315W)x125(H)x120(D)mm

Package

59*38*40mm, 12PCS/CTN

Weight

1.8kg
