MMS,GPRS Hunting Camera
CT2.0C/CT2.0CM is a kind of outdoor recording camera basically using for housing security, tracking,hunting to capture images or videos of animals without disturbing them. Specifically built to
withstand the weather conditions;
the hunting camera / outback camera is the ideal security observation system for front yard, back yard,
and any rural location as well.
The camera and recorder are both housed in the same anti-corrosive, lockable shell. Video footage or
still photos record conveniently to SD Card, which can be view easily by 2” color LCD
that on the camera itself.
Battery operated totally no need any main power when you using this hunting camera / outback camera.
Therefore this unit can be
installed in any place as required.
CT2.0C Series adapts IR thermo stimulation technology. Camera will automatically photograph or
shoot videos when triggered by moving object. The upgraded CT2.0CM can transmit the images to
users corresponding to the set phone and computers via email.
CT2.0CM Series is an ideal product for housing security, warehouse surveillance, and monitoring
wild animals with its camouflage appearance and nice shape. It is convenient to install or fasten,
could be used to take manual photographs and carry on long-time videos in Test mode.
Features:
Programmable 5/8/12 Mega pixel high-quality resolution.
Specialized compression format: H.264
26PCs IR LED for flash range as 50 feet.
With 8 AA alkaline batteries, the longest standby time is up to 6 months.
Available operation temperature: -68 F to 140 F
Impressive quick trigger time: 0.8-1s (GPRS trigger time is 1.2s)
In Interval setting, the camera automatically and constantly takes pictures or videos at set interval. This function is
specialized designed to monitor unattended objects, such as cold-temperature animal snakes or to
observe flowering, dolphin swimming.
With specified Time Setting, camera will be programmed to work during the set time every day.
This function can work together with Interval setting.
Time stamp of photos and video enables you to identify where and when the camera shot photos.
Built-in 2.0" TFT color screen to review photos and videos in camera.
Date, time, temperature and moon icons can be stamped onto photos.

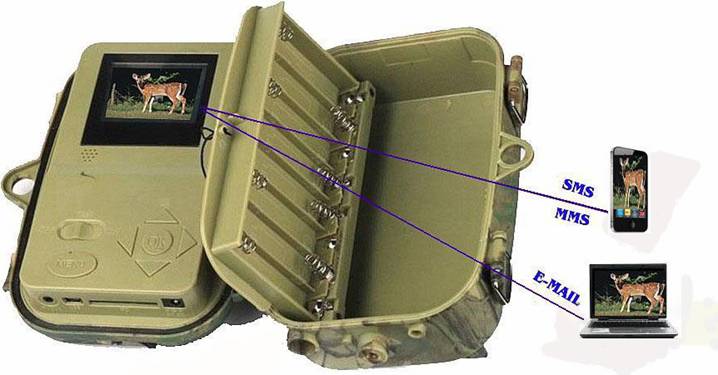

With MMS and GPRS function, camera can transmit photos to 4 settled mobile phones or 4 email account
according to set intervals constantly at lower battery consumption.
Red lights will flicker when the battery power is low.
All transmitted photos will save into SD card as well.
Easy to get real time photos from camera globally via GSM or GPRS network with four bands:
850/ 900/ 1800/ 1900MHZ.
Multiple photos-shot ensure you get clear images of objects.
Audio Recording brings you heart pumping like never before.
Two different TV OUT settings help you review photos even from Television.
Specification
Video |
|
|
Image Sensor |
5 / 8 / 12 Mega Pixels Color CMOS |
|
Effective Pixels |
2592x1944 |
|
Day/Night Mode |
Color during day / B&W at night |
|
Minimum Illumination |
0 Lux (IR on) |
|
White Balance |
Automatic |
|
Infrared Cut Filter |
Yes |
|
Lens |
F=3.0; FOV=62; Auto IR-Cut-Remove (at night) |
|
Viewing Angle |
PIR: 105; Max View:52° |
|
IR-Flash |
Yes / No / 6M |
|
PIR Sensitivity |
PIR with 3 sensitive level: High / Normal / Low |
|
GPRS |
|
GPRS |
Support Mobile, Email receiving images by motion trigger |
|
Also support mobile visit the GPRS (not available in current model) |
|
Recording |
|
Video Format |
H.264 |
|
Video Resolution |
720x480; 640x480; 320x240 |
|
Video Frame Rate |
15 or 30 FPS |
|
Video Length |
1-60sec. programmable |
|
Still Image Format |
JPEG |
|
Still Image Resolution |
12MP (4000x3000); 8MP (3264x2448); 5MP (2592x1944) |
|
Multiple Still Image Capture |
Yes (3) |
|
Image Overlays |
Date/Moon Phase |
|
Record Delay Range |
5 seconds~60 minutes 59 seconds |
|
Night Vision |
|
Night Vision Distance |
0-15m |
|
Number of Infra-Red LEDS |
26pcs |
|
General |
|
Audio Recording |
Available |
|
Operation Power |
6V DC |
|
Battery Type |
8AA |
|

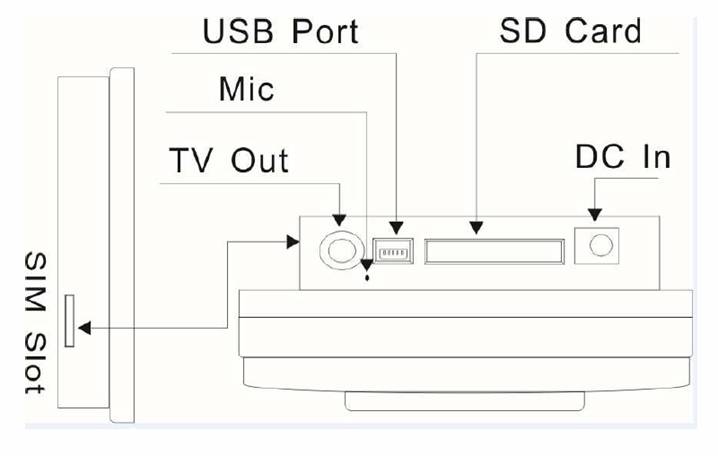

Interface |
TV out (NTSC, PAL); USB; SD card holder; |
|
Indoor / Outdoor |
Outdoor |
|
Memory Type and Size |
SD Card up to 32G |
|
Display |
2.4” Color viewer LCD |
|
Language |
English |
|
Sensor Type |
PIR (Passive Infrared) |
|
Sensor Range |
0-15m |
|
Sensor Trigger Speed |
0.8-1 s |
|
Operating Temperature |
-20 - 60°C (Storage temperature: -30 - 70°C) |
|
Operation Humidity |
5%-90% |
|
Waterproof spec |
IP54 |
|
Dimensions |
14.5x11.6x7.8cm |
|
Weight |
240g |
|

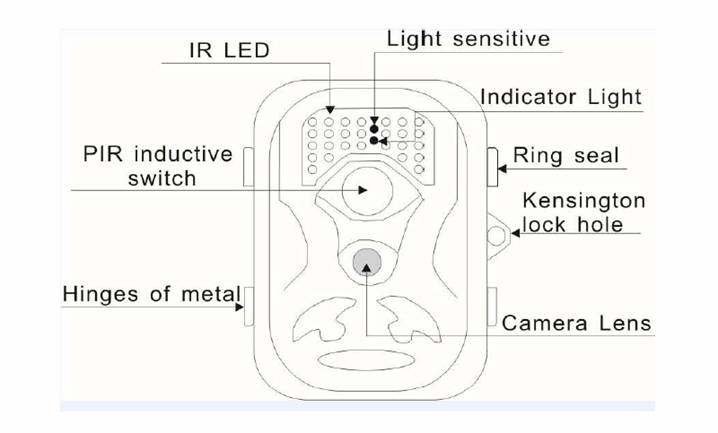

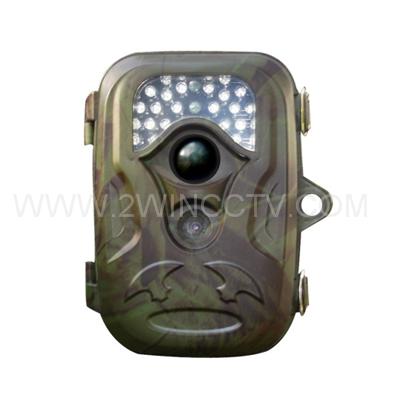

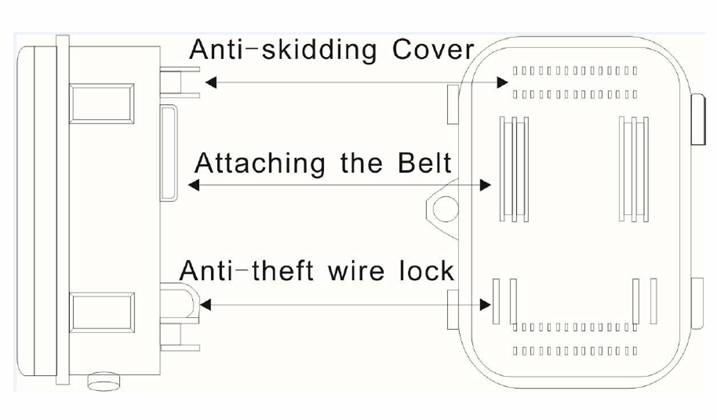

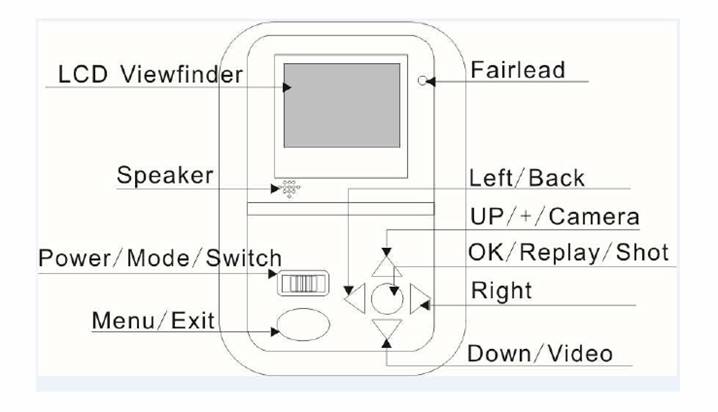

Appearance





Taking Photo Effect( Daytime)
