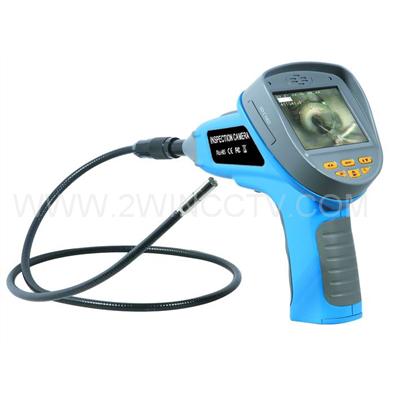

Removable LCD Borescope
Sale Points
1.Removable flexible tube
2.Len pixel:640*480
3.3.5" LCD Monitor
4.4pcs adjustable LED lights
5.Photo,video,voice recorded with SD card
6.Photo,video,voice recorded with SD card
7.Image 3X zoom in,out
8.Probe Length: 1000 mm
9.Power supply: 4pcs AA battery

This 3.5" Color LCD Video Inspection Camera use optoelectronic technology to investigate hard-to-reach area. It helps you to diagnose broken part, weld point and released parts easily to save time and increase productivity.

It has built-in 4pcs white LED light (with Brightness Control) on camera head to illuminate the inspection area. The 1 m Flexible tube is Waterproof with 8.5mm diameter , so that you can inspect area under water, gaps and holes. Optional Extension Cable (2m/ 3 m / 5m) allows you to extend the vision of inspection point.



Removable flexible tube
len's Dia.: 8.5mm (5.5mm, 10mm optional)
Flexible tube dia.: 6.8mm
LCD size: 3.5''
Built in 4pcs LED light
Adjust the LED lighting or darking
Adjust the screen's Lighting
Record function
5 times zoom in & out function
Power supply: 4pcs AA battery
Parking: Tool Box


1.Allows for easy surveying of small,hard-to-reach places
2.Mini 8.5mm water-proof camera (640x480 pixels lens)with 1 meter(3 ft) flexible and removeable extended tube
3.Manufactured and tested to water-proof level IP67
4.Increase visibility with 5X digital zoom capacity
5.High quality 3.5"TFT-LCD monitor powered with 4pcs AA batteries or built-in rechargeable Li-batteries(optional)
6.Real-time record what you see and hear, supports up to 32GB SD Card
7.Adjustable brightness on lens-mounted LED lights
8.Three useful optional accessories included: hook,mirror and magnet twisted on the len
9.Simple menu with three different languages(optional)
10.Advanced ergonomic design, Light weight,handheld design,flexible and convenient to use
11.Let you explore, help you find,fun to use

User could buy as an additional part or make replacement for damaged parts
1.Dia.3.9mm,4.3mm,5.0mm,5.5mm,8.5mm,10mm camera head for observing even narrow spots
2.Optional Useful accessories:Hook,Mirror,Magnet twisted on the len for more surverying function
3.Flexible tube,Main unit,AV Cable,USB Cable,Hook,Mirror,Magnet,SD Card
4.Extension tube with 1M,2M,3M,5M length for easy extending
5.Professional Carry Case Package
No MOQ for standard items
Customer colors,label and logo design
Stable,high quality products
Fast lead time
Professional service
Technical support
Partnership support with marketing and product integration



3.5 inch TFT LCD Color Display
4 adjustable white LED lights for night vision
Water resistant Camera Head: IP67
f/2.8 Lens with 60°Viewable Angle
30~80 mm focal distance
6.8mm PE covered metal probe with ABS handle
Comfort Grip Housing
Conformed with CE Standard
Optional Extension Cable


LCD: 3.5" LCD monitor
Lens Sensor Resolution: 640 x 480 pixels
Sensitivity: 0.7V (Lux. sec)
Color Mosaic: RGB Bayer Pattern
Automatic white comparison & exposure to light
Camera Illumination: 4 white LED


Lens: f/2.8
Lens Coverage: 60°
Focal Distance: 30 ~ 80 mm
Outer diameter: 8.5 mm (10mm, 5.5mm, 4.5mm,3.9mm optional)
IP 67 water resistant

Metal Tube Length: 1000.0 ± 2.0 mm
Diameter of hard tube: 6.8 mm
Minimum Bending Radius: 4.5 cm
Operating Temperature: 0 ~ 45 °C
Power: 4 x 1.5V AA batteries (not included)
Power Consumption: 200 mA
Handle Length: 115 mm



Inspection Tool with 3.5" Recordable Monitor

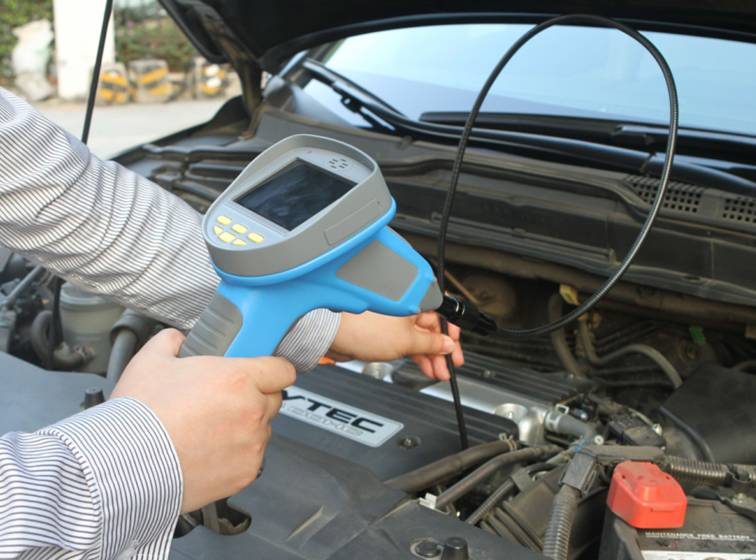

Usage: Extend Your Hands and Eyes. Appropriate for use in surveying pipes,equipments,furnishing installation,underwater viewing,parts assembly,construction sites,workshops,laboratories,education,wildlife surveillance,car maintenance and repairing,hard-to-reach areas,etc.



One Set Included:

Professional Carry Case Package
Packing list:
Flexible tube camera x 1
Main unit x 1
AV Cable x 1
USB Cable x 1
User Manual x 1
