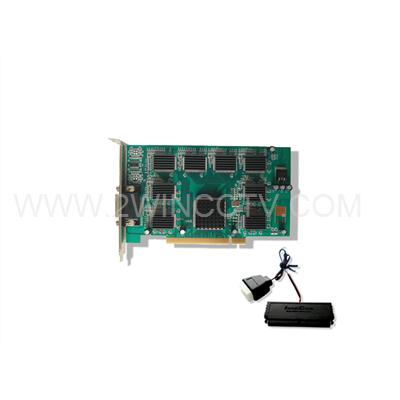

TW-LC1016
Name
Linux card 16ch
Sale Points
16ch linux dvr card
1.16 channel vide input
2.TECHWELL6805 series
3.Total Recording Rate:
240fps(NTSC),200fps(PAL)
4.H.264 compression
5.LINUX
Details:
LS-6800 LINUX DVR card

LINUX-BASED DVR CARD

FEATURES:

PCI interface

Multiple installation mode: DOM, and CD-ROM

O/S: embedded Linux

Prompt installation

No system crash and virus concerns

Record / display / playback simultaneously

Powerful CMS software based on Windows

Mobile surveillance

Software upgradeable



SPECIFICATIONS

O/S

LINUX

Compression

H.264

Video format

PALNTSC

Video input

16 channel

Display/Record frames

200/240F/S

Display/Record resolution

HALF D1CIF

Max. channel one PC support

32 channel

PTZ

YES

Alarm

YES

Motion detection

YES

Backup

YES

Network

YES

Dimension/Weight

162mm*120mm*38mm (L*W*D)/0.25KG.



System requirements:

1PCS CARD with one computer



1

Motherboardintel

Recommending intel 945G  G31 G41 and so on



2

CPU

INTEL CORE2  1500above

3

memory



1G(2G) PCS CARD OR ABOVE

4

VGA

intel

32M  support 1024*768 display mode



Software:
