Full HD car video recorder
Sale Points
1.HD 5M CMOS Sensor
2.120 degree view angle
3.Full HD 1080P,30fps
4.GPS,G-sensor function
5.With HDMI port
1080 LCD,GPS Car black box

1080 LCD,GPS Car black box



• 1920 x 1080 30FPS FULL HD video resolution

• Loop recording

• USB data reader mode

• Wide vision angle 120 degree

• Support up to 32GB Micro SD card

• Vehicle engine started, video recording starts automatically.

• HDMI output, USB data reader mode available.

• Re-play video data via IR remote controller

• GPS for path, position,speed record

• Quick data deletion h©ole operation

• Stop voice recording function: press pause button of voice recording (1 minutes) it will stop voice record. After 1 minute, start voice record again.



5 Mega pixels CMOS



120 degree



Internal with antenna

3-5 sec to catch the signal


Video output

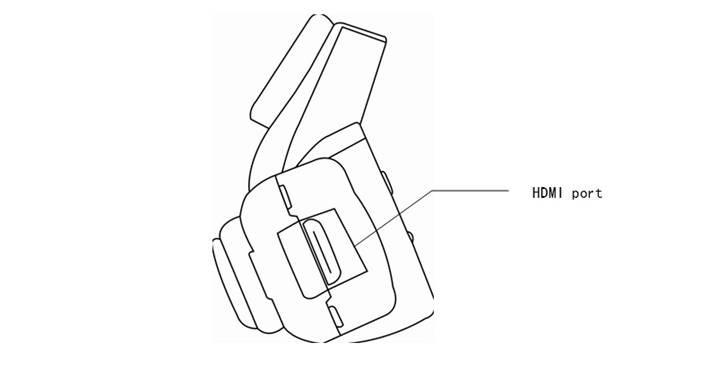

Mini HDMI Support 1080P/720p output mode



Recording  Mode Automatically start recording when the power supply, Automatic shut down with a custom menu delay when disconnecting the external power supply


Recording format

Mov-Reproduction by any player


Recording resolution

1920 x 1080(30fps) 1280 x 720(30fps)848 x 480(60fps)


Video Codec



Recording media

Micro Card (Up to 64G SDHC Card)



Built-in microphone and speaker. Microphone mute function(hot button joystick left, shutting down and re-inclusion is also possible during recording)


Laser LED Light


Package Contents:
1*1 Car DVR
1*1 Charger
1*1 Control
1*1 AV Cable

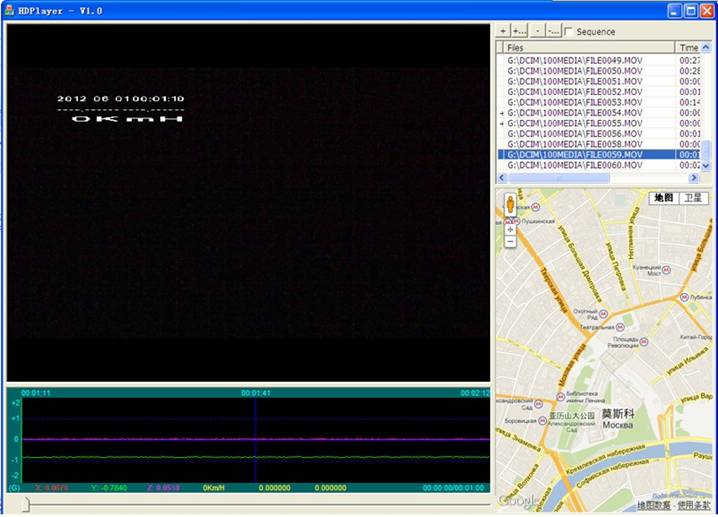

Software Interface
