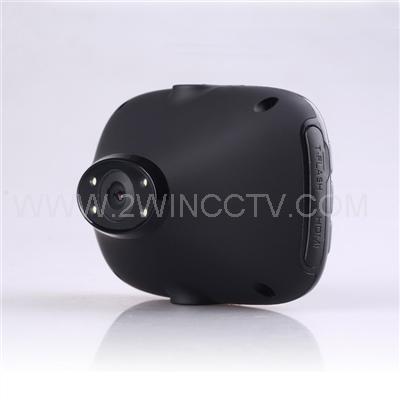

TW-MB1027
Name
LCD 1080P car black box
Sale Points
1.HD 5M CMOS Sensor
2.120 degree view angle
3.Full HD 1080P,30fps
4.Motion detection
5.HDMI port
Details:
1080 LCD,GPS Car black box

LCD 1080P car black box



Function:

1. 120 degree wide angle designit is good to record HD video.

2. 2.7inch TFT LCD

3. Record FULL HD 1920x1080P high-definition resolution video

4. H.264 video compression technology

5. Built-in speaker and microphone

6. Support high capacity battery

7. Motion detection

8. With HDMI port

9.Support up to 32GB Micro SD card



Specification

Sensor

5M CMOS sensor,(1/3.2)inch

Camera Lens

Wide angle120 degrees, the maximum aperture:F2.8

Lens of low illumination

3300mV/(Lux·sec) sensitivity

Zoom

16x digital zoom

LCD screen

2.7inch 4:3 Resolution:960X240 TFT LCD

Video Output

HDTV interfaces: HDMI output up to 1920x1080P

Photograph

JPG  12million pixels 4000X3000

Camera Resolution

FULL HD1080P(1920X1080) 10fps  HD720P(1280X720) 30fps  WVGA(848X480) 60fps  VGA(640X480) 30fps   QVGA 320X240 30fps

Video Format

MOV

Video Compression Format

H.264 Seamless connectivity

Automatic Boot Video

Plug in the power, it will automatically start. Off delay 30 seconds automatically shut down and save.

Standby auto-off time

2 minutes, 5 minutes,10 minutes, OFF

Audio

Built-in microphone, speaker AAC

Video Manner

Loop Video, Mandatory Video, Motion Detection Video, General Video

Loop Video Time

3minutes, 5minutes,10 minutes, 30 minutes, OFF

Storage

Device Memory: 1M External media: micro SD (TF) maximum support: 32GB

White Balance

Auto, Sunny, Cloudy, Tungsten, Fluorescent

Flashlight

Electronic automatic video-light (LED)

USB Interface

USB 2.0

HDMI Interface

HDMI V1.3A

Language

10 languages (English, Deutsch, François, Espanola, Italian, Portuguese, Traditional Chinese, Simplified Chinese, Japanese. Russian)

Battery

High-capacity rechargeable polymer battery 3.7V 1100mA

Power Supply

DC 5V

Dimensions, Weight

Dimensions: 83.5×62.3×44mm  Weight: about68g (With battery)

Operating Humidity,

Temperature

10%-80%, -5-45
