All Products  >  Car Security   >  Car DVR  >  TW-MD1101

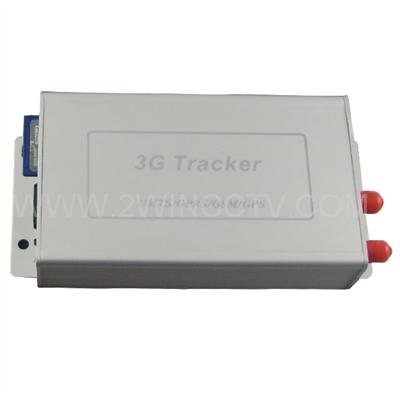

TW-MD1101
Name
3G alarm,GPS tracker DVR
Sale Points
1.WCDMA 3G,GSM
2.GPS Tracker
3.GPS logger
4.alarm by SMS,voice call,video call
5.320*240 video resolution
6.1ch external camera
7.Support 8GB SD card
Details:
1

1.Use USIM card, support WCDMA 3G network and GSM network.

2.Use video ropes to connect CCD simulated camera externally.

3.Support SMS/GPRS/ HSDPA/Internet data transportation (GPS/Internet will be illustrated in addition)

4.Support mobile phone message to control and reach privacy security

5.Support alarm by SMS ,voice call and video call.

6.Rrecord a video of alarm process to SD card

7.Built-in Li-ion battery, can work normally even in power off state.

8.Monitor the place any time any where by video call.

9.Integrate anti-theft, location, real-time control, monitor, video record, urgent alarm and tracking service

10.mainly used in monitoring and locating the ship and train, and in fleet management of moving car and truck.



Specification

Content

Specification

Dim

66x111x27 mm

Weight

215g

Network

HSDPA,UMTS,EDGE,GSM/GPRS

Net frequency channel

EDGE/GPRS/GSM  850/900/1800/1900 MHz

HSDPA/UMTS      850/1900/2100 MHz

Chip

SIRF3 chip

3G chip

WCDMA

GPS sensitivity

-159dBm

GPS accuracy

5m



Time to first initiate



Cold status  45s

Warm status  35s

Hot status  1s

Input voltage

12V  input

User-defined input alarm detection level

0V

Video form

MP4

Battery

Chargeable changeable 3.7V 1500mAh  battery

Standby

48hours

Storage temp

-40°C to +85°C

Operation temp

-20°C to +55°C

Humility

5%--95% non-condensing

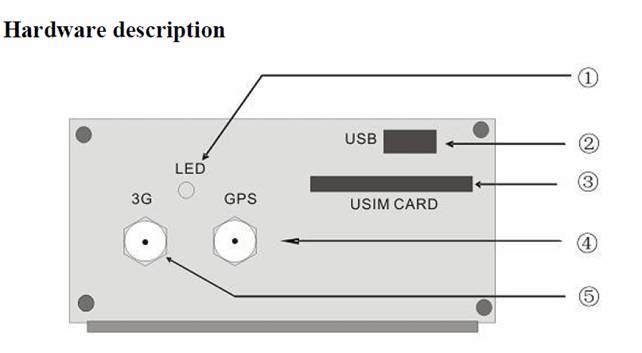

1LED indicator light   2USB Port  3USIM Slot  4GPS reticle  5 3G

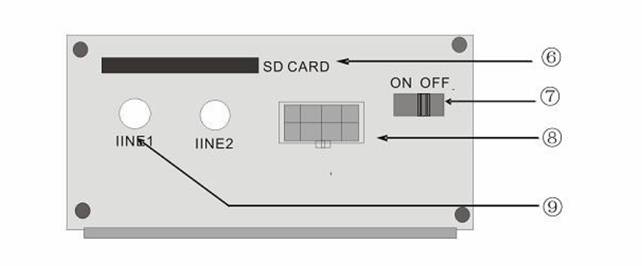

 6SD CARD Slot  7 ON/OFF   8Connection port    9external video jack

One-time locations

Lat: 22.636027N(latitude)  Long:114.032210Elongitude,speed: 023.0speed   direction:270.0 (direction)  time:13/09/09 12:00(time)

http://maps.google.com/?q=22.636027N, 114.032210E

URLmobile phone click the URL link in the positioning message, can view the location map of the device (mobile phone must support WAP get online function)



Incoming Video call

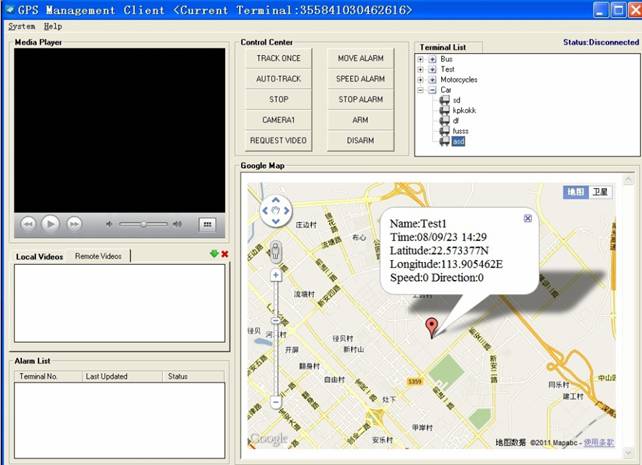

PC software interface
