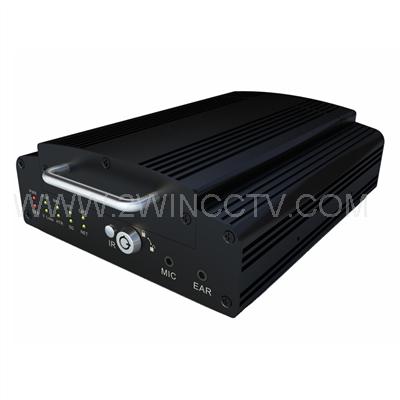

Product Guide
|
|
|
|
TW-MD4006
Name
HDD 3G GPS Wifi Car DVR
Sale Points
1.4ch video,audio input
2.6ch alarm input,1ch output
3.GPS,3G,Wifi,G-sensor are optional
4.Support RS232,RJ45
5.DC6-36V wide voltage
6.Support DC12V/2A power output
8.HDD,SD card storage
|
|
Details:
•
- H.264 video
compression format, 4-channel video input, 1 composite video output; used
by the U.S. ADI Professional 10bit image processing chip, in the same code
on the market shed more than 8bit chip processing to improve the quality
of the picture 4 times. 4-channel image processing chip for each path
independently without disturbing each other.
- Industrial-level
design, using imported special vehicle connectors to ensure the stability
of product performance
- Accident under the
power-off protection function: using special UPS technology, which enables
the machine to cut off the external power supply can work 3 to 5 seconds,
can ensure video data integrity preservation, to avoid file corruption,
convenient accident inquiries.
- Adopt the most
advanced license plate display technologies and power-down off delay
feature
- Support for GPS,
G-sensor accelerometer sensor, optional features
- Support for 3G wireless transmission function, the various 3G standards, WCDMA, CDMA2000, TD-SCDMA ...., or GPRS, EDGE, WiFi wireless transmission, optional features.
- Real-time video: 100f / s (PAL); 120f / s (NTSC); video resolution: CIF / HD1 / D1 optional.
Maximum can support 2-CH, D1, 2 CH, CIF format.
- 1 CH microphone or
two lines of audio input, G.726 compression format;
- 6channel alarm
input, 1-CH alarm output.
- Communication Interface：RS232 、RJ45
- Video mode: start
video, timing video, police video.
- Video file formats:
ASF, common software can be used VLC player, or use the playback software
package to support 1CH or 4CH synchronization with playback
- Date storage: The
Max can support one piece of 2.5 inch hard disk plus a piece of 32GB SD
card, Japan original SD linker.
- Boot time is short:
You can start within 15 seconds the machine quickly into the normal
operating mode. Support key switch machine, timer switch machines, delay
shutdown.
- 8-36V DC voltage
input ,suitable for all kinds of vehicles; DC 12V/2A output
- low power
consumption, the machine to normal working condition <10W;；
- High-performance
- anti-vibration
- Wide temperature and
operating range, operating temperature: -25 ℃ ~ +70 ℃；
- Mini and industrial
design appearance, easy to installation, ease of concealment.
Specifications：
|
Item
|
Description
|
|
Operating system
|
Linux (2.6)
|
|
Video Compression Format
|
H.264 main profile. Using Hisilicon Hi3511 high-performance
processor, 10bit sample chips. Each video was processed separately, without
disturbing each other work.
|
|
OSD
|
Character overlay function, support logo, time and date, vehicle
ID and other information as the video.
|
|
GUI
|
Graphical OSD Interface
|
Through the remote control to set system parameters
|
|
Video and video systems
|
Video Input
|
From 1CH to 4 CH CVBS video input, 1.0Vp-p, 75Ω
|
|
Video Output
|
1CH CVBS video output, 1.0Vp-p, 75Ω
|
|
Preview
|
To support 1CH and 4-CH preview format
|
|
Video Resolution
|
Support CIF, HD1, D1 optional, maximum support 2CH D1 + 2CH CIF
|
|
Video Quality
|
1-4 video quality options, the maximum 1, minimum 4
|
|
Video Rate
|
PAL: 100F/s , CCIR625 line,50 field；
NTSC: 120F/s, CCIR525 line,60 field;
CIF: 256Kbps ~ 1.5Mbps, 4 levels picture quality optional
HD1: 600Kbps ~ 2.5Mbps, 4 levels picture quality optional
D1: 800Kbps ~ 3Mbps, 4 levels picture quality optional
|
|
Video stream standard
|
ISO14496-10 standard
|
|
Video mode
|
The default auto-video, support regular video, alarm video
|
|
Audio
|
Audio input
|
1CH microphone or 2CH linear input
|
|
Audio output
|
2CH output, Output Level:1Vpp ~2Vpp
|
|
Compression Format
|
G.726, Rate 5KB/s
|
|
Alarm
|
Alarm Input
|
6CH Alarm Input
|
|
Support police before the 10 seconds and the video-length
dynamically allocated
|
|
Alarm output
|
1 CH Alarm output
|
|
Communication Interface
|
RS232，RJ45 10M/100MAutomatically adapt to network interface
|
|
Wireless Transmission
|
Support built-in 3G wireless transmission capabilities, WCDMA, EVDO, HSPA, TD-CDMA .... optional, (GPRS, EDGE, WiFi wireless
transmission can be customized).
|
|
GPS ,G-sensor
|
Support Module Built-in
|
|
Video Storage
|
SD storage card
|
Date storage: The Max can support one piece of 2.5 inch hard
disk plus a piece of 32GB SD card, loop video, automatic switching, data is
automatically covered
|
|
Firmware Upgrade
|
Supports SD Card Upgrade
|
|
File Format
|
ASF
|
|
File System
|
FAT32
|
|
Video playback
|
Video Search
|
According to the time video, video mode (alarm, normal), video
memory card video file, etc. to search for video.
|
|
Replay
|
Maximum support 4-ch synchronization with playback, while the
vehicle information on file for analysis, support fast forward, rewind, play,
pause,
|
|
Support for 2, 4, 8, 16 times the speed of fast forward or
rewind
|
|
Power and consumption
|
Power
|
1, key switch machine --- According to the signal switching
machines, can also be set to delay the shutdown. 2, timer switch machine
|
|
Input
|
DC:+8V ~ +36V
|
|
Output Voltage
|
+12V@2A；+5V@0.5A
|
|
Power-Off Protection
|
UPS technology, video data intact saved to ensure that the file
is not damaged when an unexpected power down.
|
|
Power Rate
|
Normal working condition＜10W; Standby＜0.5W
|
|
Work environment
|
Temperature
|
-25℃ ~ +70℃
|
|
Humidity
|
20% to 80%
|
|
Security Management
|
Password
access
|
User passwords, administrator password, two-level management
|
|
Other
|
Size
|
160(W)×200(D)×62(H)MM
|
|
Net weight
|
2.2KG
|

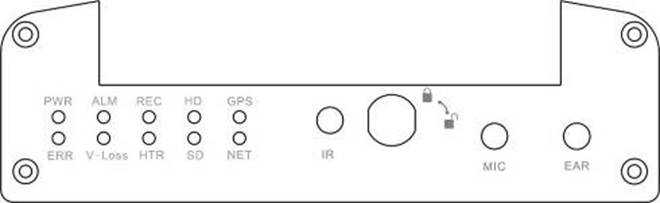

Front panel

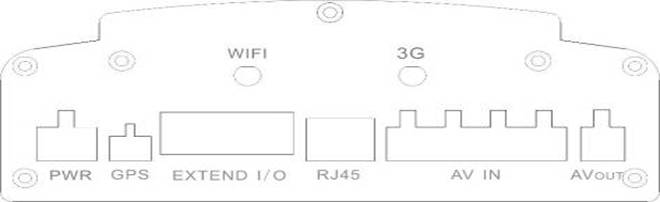

Back panel

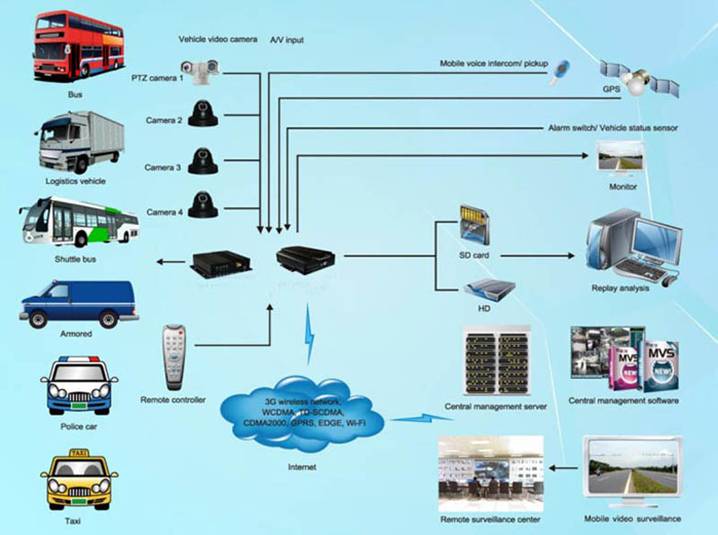

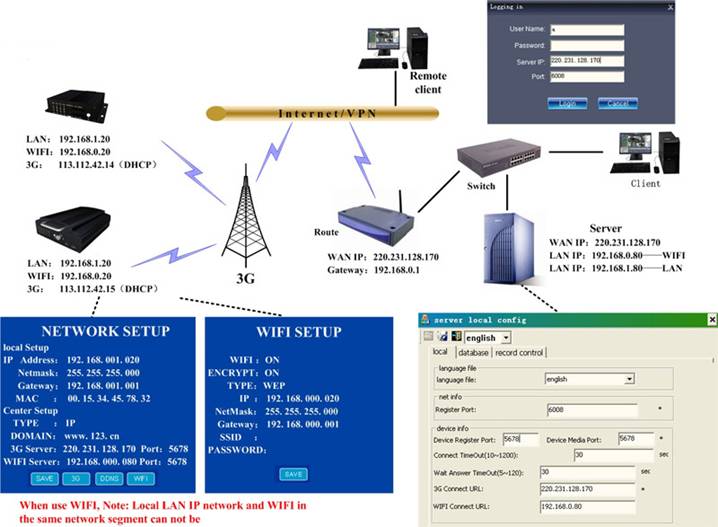

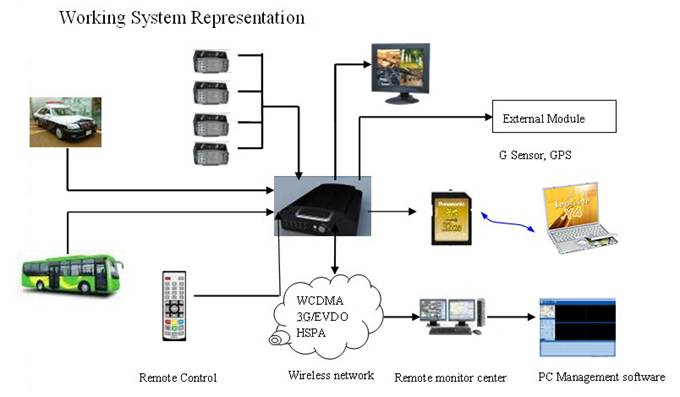

Connection Picture

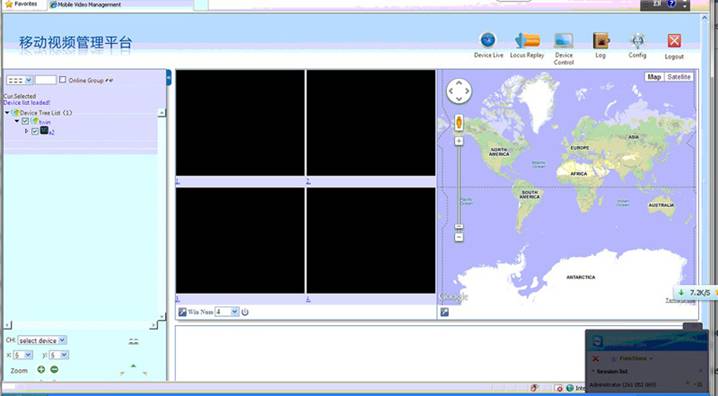

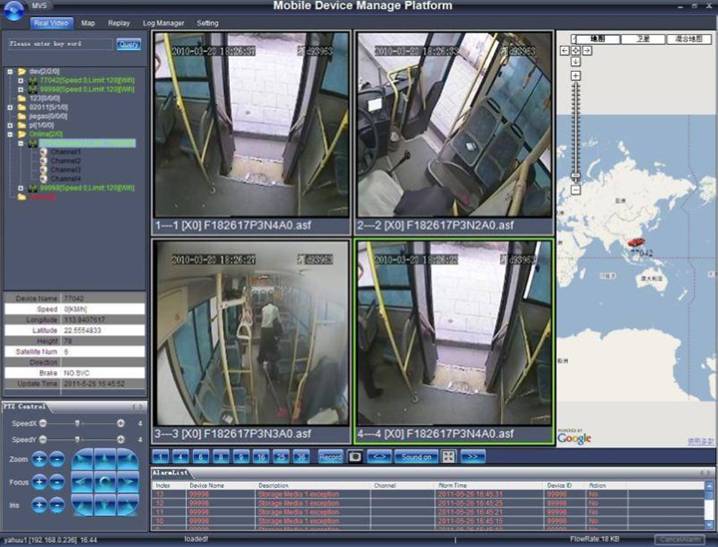

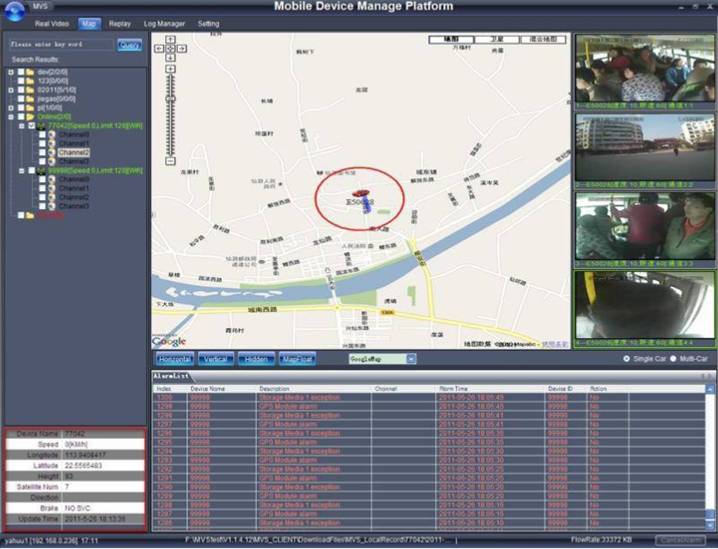

Manage Platform
Player software
IE Mobile Video
management (Optional)

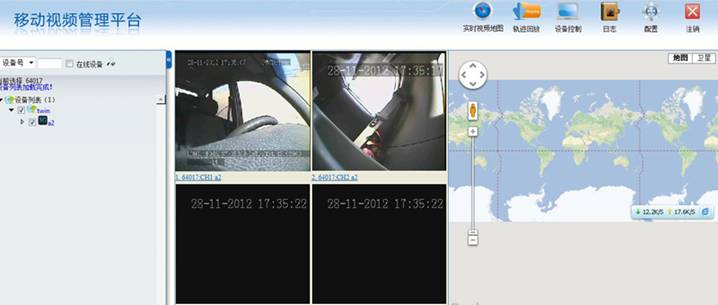

IE living view interface
|
|
