TW-MD4107
Name
Economical SD card car DVR
Sale Points
1.4ch/1ch video input/output
2.Recording format:D1,CIF
3.GPS,3G is optional
4.1ch/1ch audio input/output
5.Build-in singal channel microphone
6.4 sets of alarm input ports,built-in buzzer
7.Power:DC8-36V
8.Storage:SD card
Details:
Economical SD card 3G GPS car DVR

Economical SD card 3G GPS car DVR



1.4ch input to harness connector

2.1ch video output to harness connector

3.H.264 compression format

4.Recording format:D1,CIF

5.Build-in singal channel microphone

6.Quick search overall event log

7.The full recording time and date can be showing in the monitor directly

8.Auto-record after memory car plug-in and power supplied

9.Data stor in SD card for better safety and anti-vibration performance

10.4 sets of alarm input ports,built-in buzzer

11.8-36V Wide Voltage

12.Support record video with autio,video,G-sensor and GPS data at the same time

13.115*132.7*30mm

14.GPS and 3G (Optional)





Features

Max. up to 4 CH vehicle cameras, can take record for inside and outside the vehicle.

Video output for live view, playback with monitor.

H.264 Compression format.

Recording formatD1 and CIF.

Build-in single channel microphone.

Quick Search Overall Event Log.

The full recording time and date can be showing in the monitor directly.

Auto-Record after memory card Plug-in and Power Supplied.

Data Store in SD card for better safety and anti-vibration performance.

4 sets of alarm input ports, built-in buzzer.

Support Record Video with audio, video, G-sensor and GPS data at the same time.

Optional for 3G module, control the driving status and data at any time.





Specification



Items

Description

Video format

NTSC

PAL

Video input

4CH Input

Audio input

1CH Input

Video output

1CH output

Audio output

1CH output

Alarm input

4 alarm input

Alarm output

Buzzer

Display mode

Full Screen, 4 Split

Record

resolution

highest

D1 720 x 480

D1  720 x 576

Record

resolution

normal

CIF 360 x 240

CIF 360 x 288

Recording Frame

Max. 120 FPS

Max. 100 FPS

Compression Format

H.264 Technology

Operating system

Embedded Linux

Single-tasking

Record / Backup

Recording mode

Full-time recording

LED indicator

Power, recording, GPIO

Buzzer

Video Loss

Storage

SD Card

Back-up system

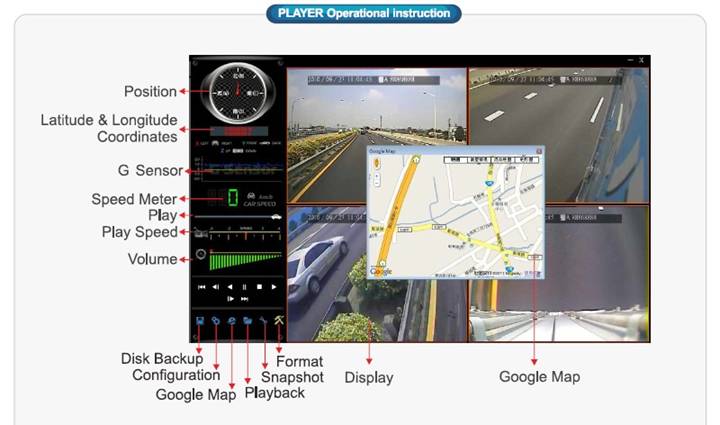

CarBox Player

Firmware upgrade

SD Card

Multi-language

English /Simplified Chinese /Traditional Chinese

G-SENSOR

Yes

3G-module

Optional (USB 3G dongle or build-in 3G module)

GPS position

Optional

Control method

IR remote controller

Power supply

DC+12V / 500mA (not including Cameras)

Dimension

115mm x 132.7mm x 30mm (W x D x H)

Weight

0.4kg (including SD card)

Operation Temperature

-20~ +65 (inside vehicle)

Accessories

Standard

Main Machine, 3 Pin Power Cable, Alarm Cable,

3M Extending IR Lead, Remote Control,

Microphone, Driver CD, Quick Guide

Build-in 3G: Antenna, 1.5M Extension Antenna

Cord

Accessories

Optional

3G Module, G-Mouse, SD Card

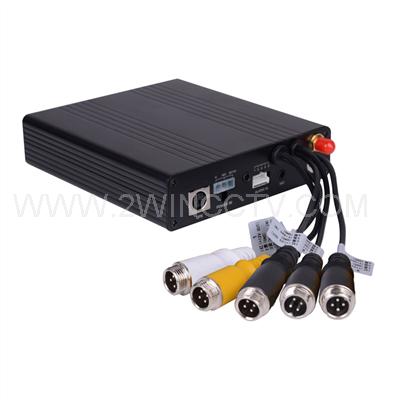

Product Appearance

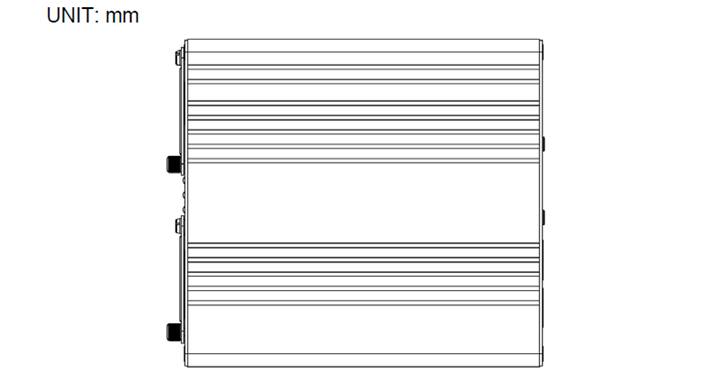

Product Dimension

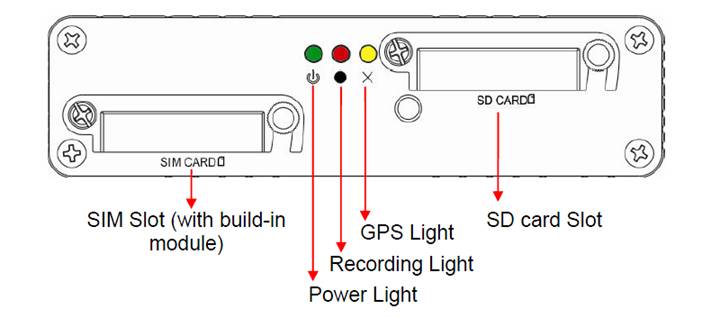

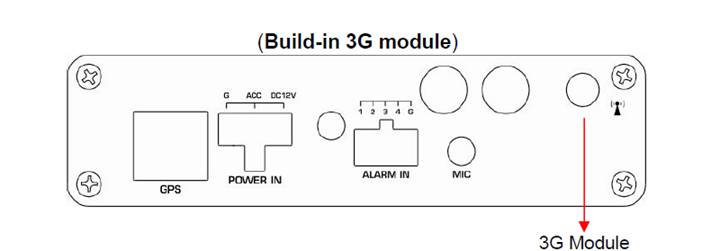

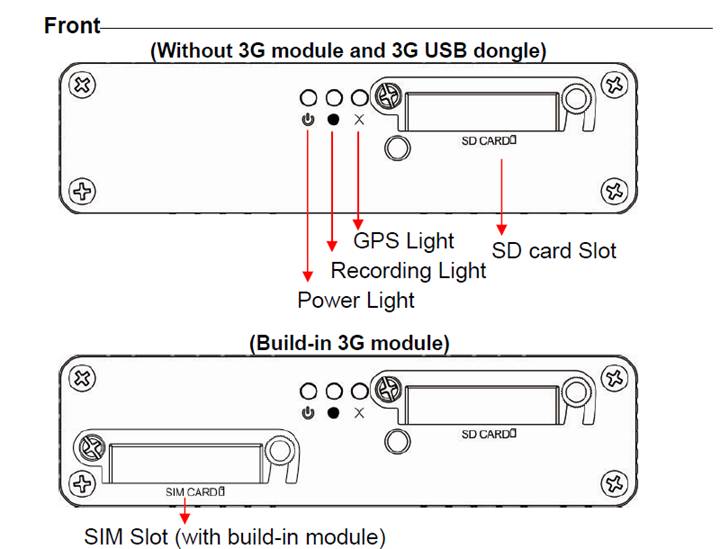

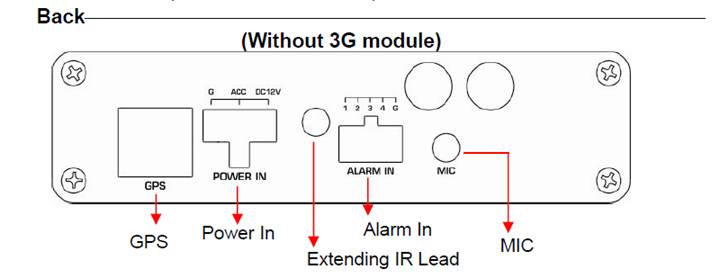

Panel

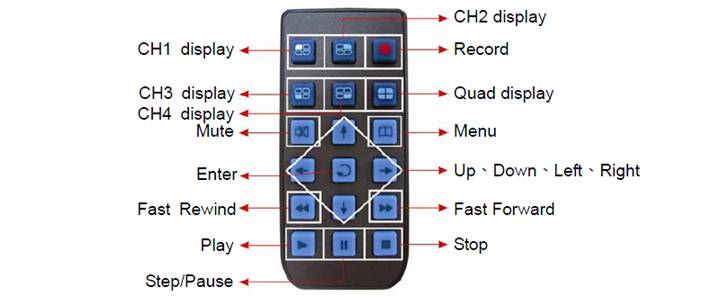

Remote Controller

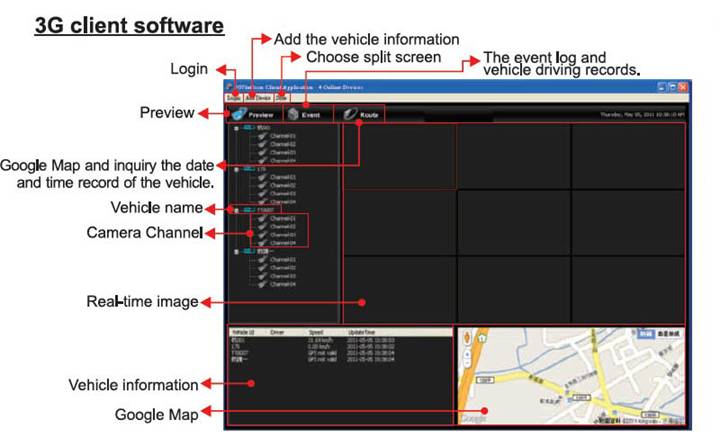

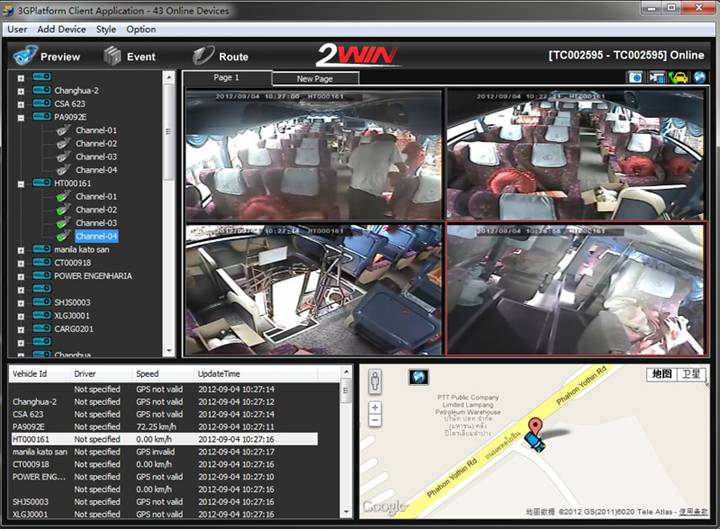

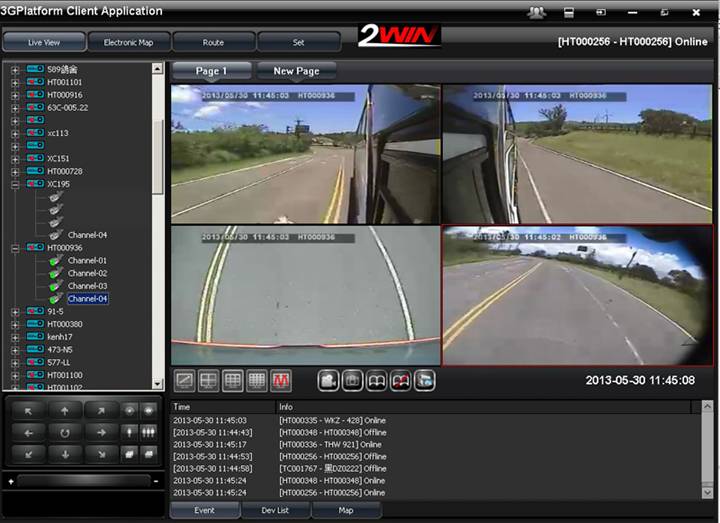

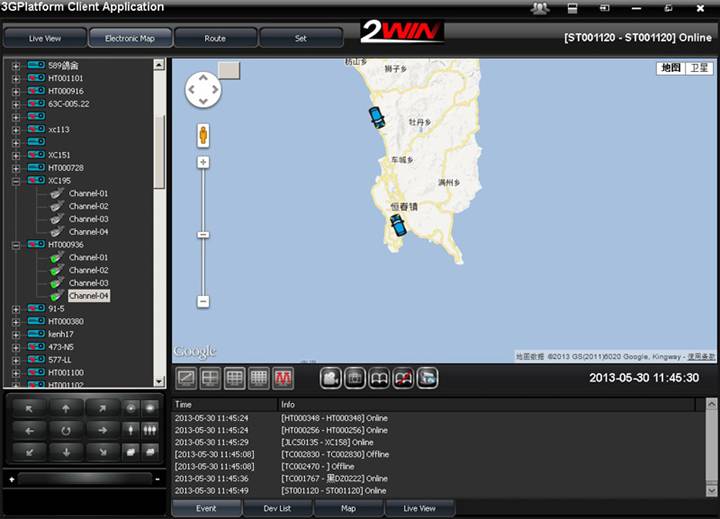

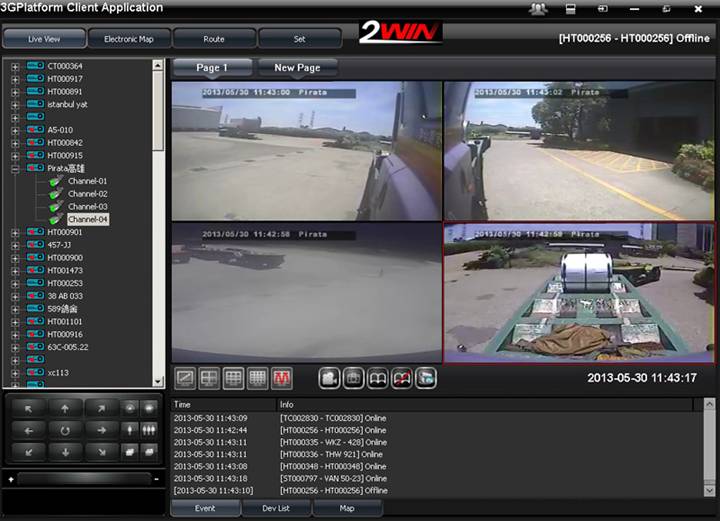

3G Manage Platform
