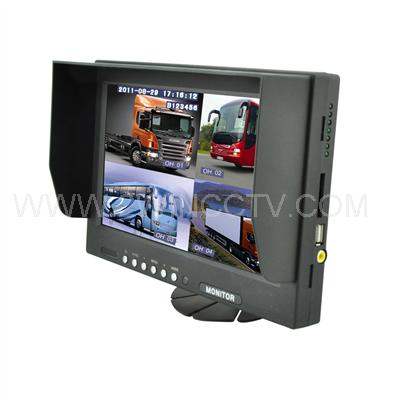

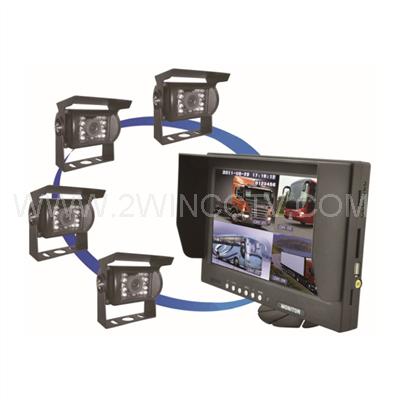

9” all-in-one monitor DVR
Specification
9 inch digital TFT panel
Aspect ratio:16:9 image
Resolution:800*R.G.B*480
Monitor controlled by buttons on panel
DVR controlled by remote controller
4 Channels simultaneously to full time live record
System: PAL & NTSC Auto-switching
Video decode H.264 Audio decode ADPCM
Recording by manually: time setting, alarm and moving detect
Video search: time retrieval, fact retrieval, channel retrieval
Recording back up with USB port
4 ways video inupt,4 ways audio input, 1 way video output
Full image/4 images adjustable
Picture adjust with single and quad pictures
Recording saved to SD card, 32G support maxima.
Recording speed PAL:25 FPS NTSC:30 FPS Local playback in channel 1 or 4 channels
Alarm in:4 switching value (Optional)
Interface for saving:1 USB and 1 SD
One way ignition signal
Dimension:235*158*72.5mm
Parameters
|
Screen Ratio |
16:9 |
|
Back Light Luminance |
LED, 400cd/㎡ |
|
Resolution |
800xRGBx480 |
|
Compatible system |
NTSC & PAL (automatically) |
|
OSD control |
Color, Brightness, Contrast, Volume, Language
(English, Deutsch, French, Spanish, Portugal, Italian, Dutch,
Simplify Chinese) |
|
View angle |
Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
|
Image reversion |
UP/Down and Left/Right |
|
Power requirement |
8-32V DC optional) |
|
Power consumption |
5W |
|
Storage temperature |
-30℃ to 80℃ |
|
Working temperature |
-20℃ to 70℃ |
|
Size |
235x158x72.5 mm |
|
Weight |
780g |
|
Key color |
Water plating silver(light) |
|
AV Inputs |
4 ways video input,4 ways audio input,1 way video output |
|
Number of Trigger and display |
1 way trigger |
|
Optional functions |
Alarm in : 4 switching value |
|
Other features |
Built-in speaker
Monitor controlled by button panel
4 channels simultaneously to full time live record
Full image/4 images adjustable
Recording saved to hard disc driver or SD card
Recording speed: 25 FPS(PAL) 30FPS(NTSC)
Interface for saving :1 USB and 1 SD, 1 way ignition signal |
|
Accessories |
Remote controller, Power supply cable , User manual, Bracket, CD |
|
Package |
6pcs/box net weight:8.2KGS gross weight:9KGS M: 54*43*27cm |

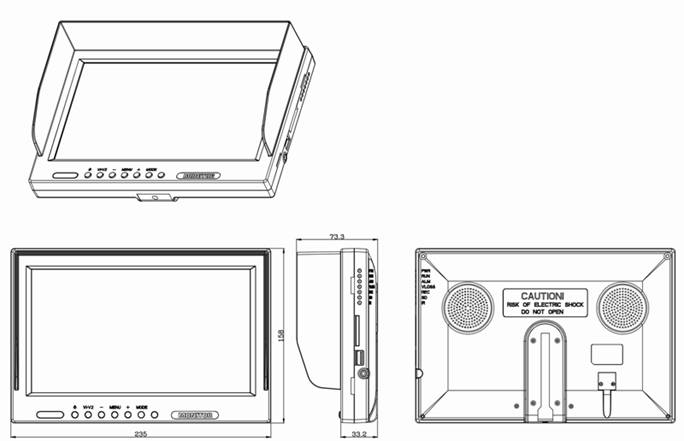

Outline dimensional drawing

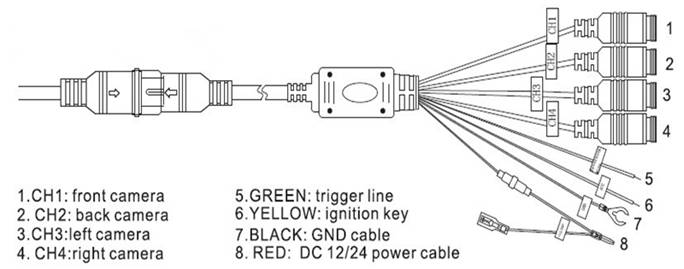

Connection diagram
