TW-MB2000
Name
3ch rear view mirror car dvr
Sale Points
1.2pcs internal lens
2.1pcs external camera
3.120 degree view angle
4.GPS is optional
5.Motion detection function
5.HDMI output
Details:
1

This product is a digital high-definition camera ,use the latest design, science and technology, a common high-definition camera, also a professional HD car video recorder; Not only record up to 1280 x720p HD high resolution image, also take pictures of 100 pixels, Use SD card as a storage device, Compare with the traditional camera, this product make HD video, can record more perfect video pictures, video image can also be played on HD LCD TV by HDMI direct transmission. Use this product, enjoy real HD high quality life.



1.Three cameras omnibearing shooting

2.120 degrees high resolution ultra wide Angle lens design, high analytical shooting

3.Built-in 1/4 inch low noise degree HD sensitive components, can be in darker occasions capture ultra clear picture

4.1280 x720p FULL HD resolution video

5.H.264 video compression technology

6.Take pictures,10 million pixels photos

7.Built-in lithium battery, Automatically recording when charging

8. Built-in microphone, speaker

9.Support high capacity SD card

10.Support screen preview when shooting,capture the ideal picture

11.Motion detection function

12.Shock-proof

13 GPS is optional

14.TV/HD interface, can connect with full HD TV

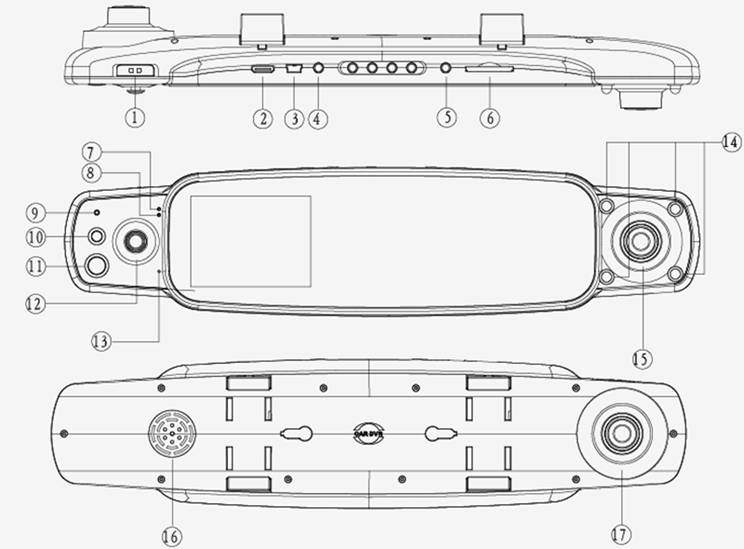

1.Three-way switch                             2.HDMI interface

3USB interface                                 4. AVIN interface

5TV OUT interface                              6. SD card slot

7.Work LED indicator                            8.Charge LED indicator

9.Reset button                                  10.Power button

11.SOS button                                  12.Direction button(5 direction)

13.Microphone                                  14.Infra-red Night Vision fill light

15.Back camera                                 16. Front camera

17.Speaker



Parameters

G-sensor Level

Close  level 1 level 2  level 3  level 4  level 5

Turn on record

On/Off

 Record quality

High Middle Low

Resolution

VGA(640*480) HD(1280*720)

Motion detect

close , level 1   level 2  level 3

LCD light  intensity

level 1  level 2  level 3 level 4

picture in picture

On/Off

speaker volume

30% 50% 80% 100% mute, 30% 50% 80% 100%

IR LED

On/Off

Screen sleeping time

close .1minute .2minute

Delay shutdown

close,15 second,1minute,5minute

keys volume

On/Off

GPS

On/Off

light frequency

50HZ  60HZ

 record time

1minute.2minute

Auto turn off

close,1minute,5minute

date Stamp

On/Off

Language

Chinese, Korea, English, Russian

time zone

-12:00.+12:00 Greenwich -12:00 to +12:00

Date

2012-01-01 00:00:00   Year month day hour minute second,

Formatting

Cancel, yes

Reset system

Cancel, yes

Version

V2012082801

Sensor

130 CMOS Sensor

Lens

f=2.4mm F/NO=2.0

Wide-angel

120 degree

LCD display

3.0’ TFT LCD

TV/HDMI output

TV/HDMI Interface

USB output

USB2.0

Video format

MP4

Video resolution

1280*720;640*480

Picture format

JPG

Picture resolution

1280*960

Video codec

H.264

Audio

Build in Microphone and speaker

Memorizer

Up to 32GB SD card

Menu language

Many language

Power

External1+ ,5-, 5V 1200mA,Built-in lithium battery

Work temperature

-10~550C

Storage temperature

-30~850C
