All Products  >  Car Security   >  Rearview Recorder  >  TW-MB2003

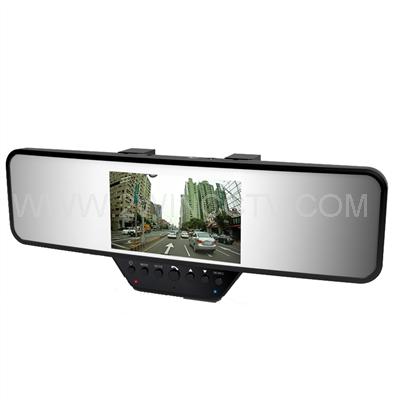

TW-MB2003
Name
2ch camera video recorder
Sale Points
1.Built-in 2 cameras
2.3.5 inch TFT display
3.Bluetooth function
4.Motion detection function
5.G-sensor
Details:
1

2ch camera video recorder



Product Features

1.220-degree wide angle video, image restoration effect is good, no distortion

2. Built-in microphone/speaker

3. Support high capacity TF card(recommended to use high speed card

4. Loop video, seamless coverage video

5. Automatically taking video when start the car, it will turn off automatically delay 5 seconds after car is shutdown

6. Supports video and AV signal output

7. Motion detection

8. Acceleration impact files automatic protection function, does not overwrite crucial files

9. Bluetooth hands-free calling to improve driving safety

10. Large screen displays, surface design of the rear-view mirror, upgraded Visual angle



Screen

3.5 inch

Pixels

1.0MP

LENS

220 degree wide angle

Minimum LUX

1LUX

RESOLUTION

1920*736  1280*480

format

AVI(about 256M)

Image resolution

1920*736 1280*480

Image format

JPG

Motion detection

support

Memory card

TF

capacity

MAX 32G

USB PORT

USB2.0

POWER PORT

DC12V

OPTICAL FRENQUENCY

50HZ/60HZ

battery

630mAH

power

400mA

Microphone/speaker

support

TV OUT

support

language

English/Français/Deutsch/Italiano/Español/Português/한국어/Русский/简体中文/繁體中文

weight

370g

size

278*96*43mm

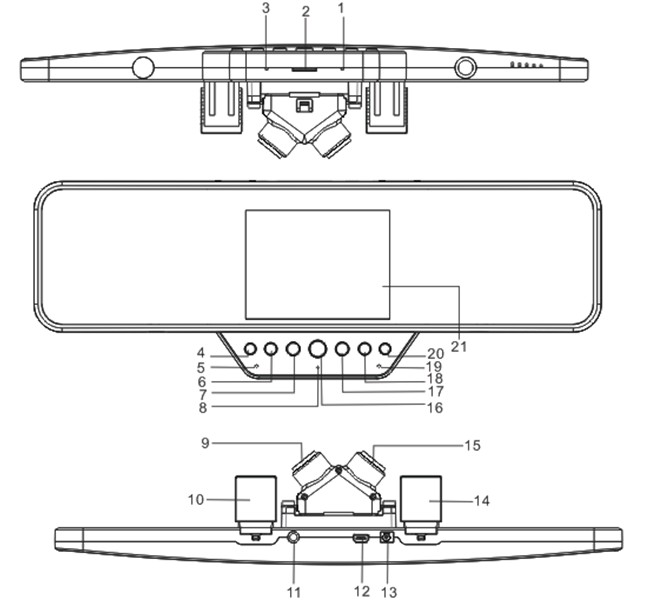

1. Reset                                  2.TF card slot

3. Microphone                            4. ON/OFF

5. Power/working led                      6. MENU

7. MODE                                 8. Bluetooth microphone

9. Left camera                            10. Left Elastic buckle

11. TV OUT port                           12. USB port

13. DC power port                         14. Right Elastic buckle

15. Right camera                          16. Bluetooth hands-free key

17. UP                                   18. DOWN

19. Bluetooth led                          20. OK/REC

21. Screen

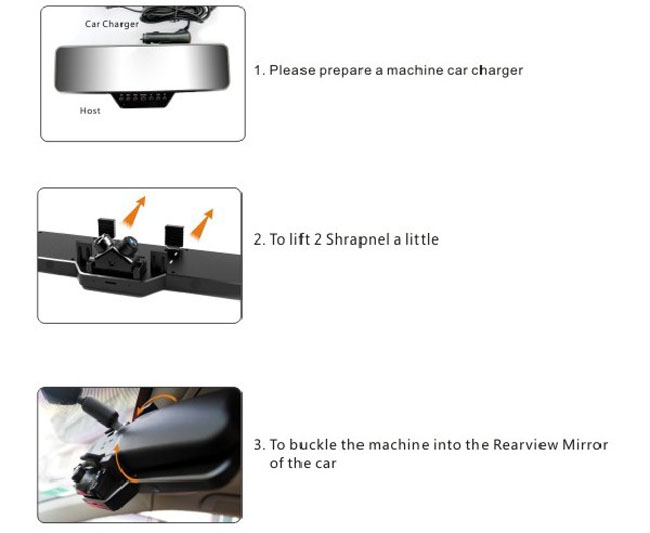

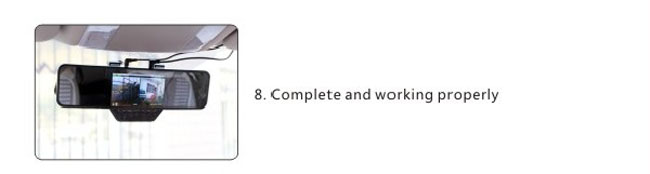

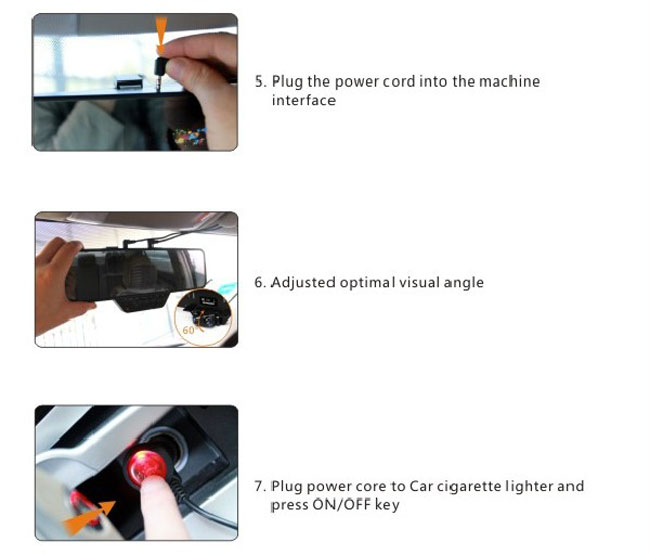

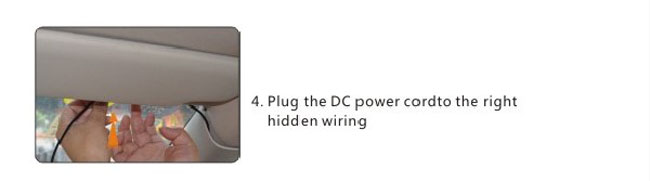

Installation
