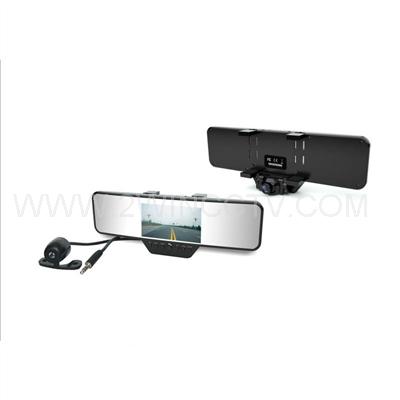

TW-MB2004
Name
2ch car dvr recorder
Sale Points
1.2 cameras(1 built-in,1 external)
2.4.3inch TFT display
3.Bluetooth function
4.GPS function is optional
5.Picture in Picture
6.G-sensor
Details:
1

2ch car dvr recorder

Product Features

1.120-degree wide angle video, image restoration effect is good, no distortion

2. Built-in microphone/speaker

3. Support high capacity TF card(recommended to use high speed card

4. Loop video, seamless coverage video

5. Automatically taking video when start the car, it will turn off automatically delay 5 seconds after car is shutdown

6. GPS function is optional

7. Motion detection

8. Acceleration impact files automatic protection function, does not overwrite crucial files

9. Bluetooth hands-free calling to improve driving safety

10. Large screen displays, surface design of the rear-view mirror, upgraded Visual angle

11. Picture in Picture

12.Recording while parking



Switching of cameras

Dual camera (split-screen display) - Dual camera (PIP display) - Front camera - Rear camera - Dual camera(split-screen display).



Parameters



Mode

Menu

Menu setting



Video mode

Video

MP

VGA/720P

RT

1min/2min/5min/OFF

video setting

Bright

Auto / Sunlight / Fluorescence/ Cloudysky / Tungsten

Exposal

-3/-2/-1/0/1/2/3

Color

Null / Black and white / Negative / Ancient / light blue

Auto detect

OFF/ON

Water Mark

OFF/ON

Audio

OFF/ON

Auto record

OFF/ON/Charge video

Language

中文简体/中文繁體/English/Deutsch/日本言語/ Français/ Português/한국어/ Italiano/Русский

Frequency

50Hz/60Hz

Shutdown time

1min/3min/5min/OFF

              Key tone



OFF/ON

Readjustment volume

11/12/13/14/15

              Auto_backbright_off

1min/3min/5min/off

G-sensor

High/Middle/low/off

 GPS correction time

OFF/ON

Park video

OFF/ON

Date set

YY/MM/DD

format

Yes/on

System Info

              Current version of the machine

Default set

Yes/on

Photo mode


MP

1M/2M/3M/5M/8M/12M

Photo setting

Bright

Auto / Sunlight / Fluorescence/ Cloudysky / Tungsten

Exposal

-3/-2/-1/0/1/2/3

Color

Null / Black and white / Negative / Ancient / light blue

Water mark

OFF/ON

Language

中文简体/中文繁體/English/Deutsch/日本言語/ Français/ Português/한국어/ Italiano/Русский

Frequency

50Hz/60Hz

Key Tone

OFF/ON

Readjustment volume

11/12/13/14/15

Date set

YY/MM/DD

Format

Yes/no

System info

              Current version of the machine



Default set

Yes/no





LCD Screen

4.3 inch TFT LCD(480*272)

COMS SENSOR

1.2MP

Lens

120 degree wide-angle lens

Minimum LUX

1LUX

Video resolution

The front lens   1280*720/640*480

The rear lens   720*480

Video format

MOV

Video compression format

H.264

 Frames

The front lens   1280*720 30fps/640*480 30fps

The rear lens   720*480  25fps

Image resolution

Dual lens   1M/2M/3M/

Single lens   1M/2M/3M/5M/8M/12M

Image format

JPG

Cycle recording

1min/2mins/5mins/OFF

AV IN with reversing function

SupportOptional

GPS

Optional

G-sensor

Support

One key to turn on/off recording

Support

One key save

Support

Bluetooth

Optional

IR remote control

Optional

Parking while recording10mins parking of 5fps

Support

Memory card type

TF card

Memory card capacity

Maximum support 32G

USB port

USB2.0

Vehicle charging source interface

DC12V

Frequency

50HZ/60HZ

Battery

3.7V/630mAH  lithium polymer battery

Microphone/Speaker

support

Language

Simplified Chinese/Traditional Chinese/English/Russian/Japanese/Korean

Weight

360G

Dimension

278*96*49MM

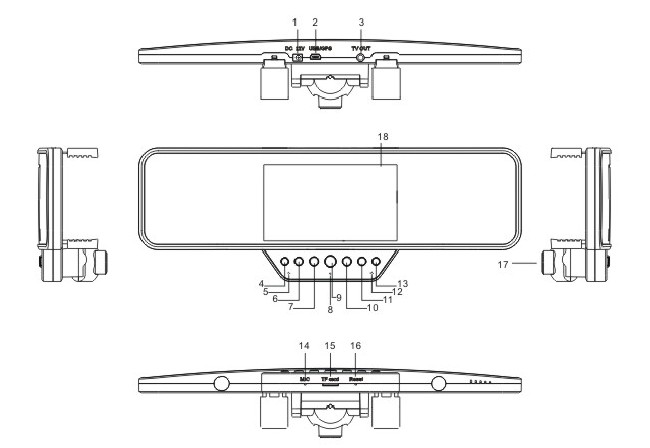

Structure


1. P
ower interface                    2.USB/GPS

3. AV in port                             4.ON/OFF

5. Light                                      6.Menu

7. Mode                                    8. Built-in speaker

9. Bluetooth                              10.UP

11.Down                                   12.Bluetooth light

13. OK                                      14. Microphone

15. TF card slot                        16.Reset

17. Lens                                   18.Screen

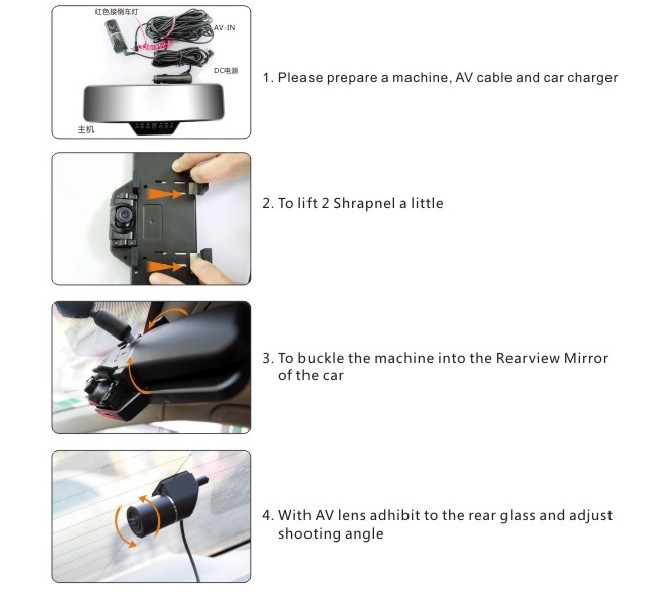

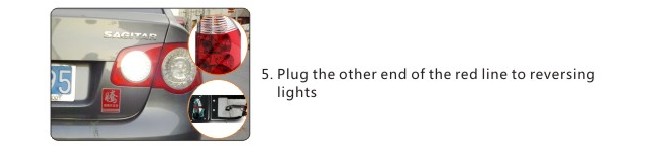

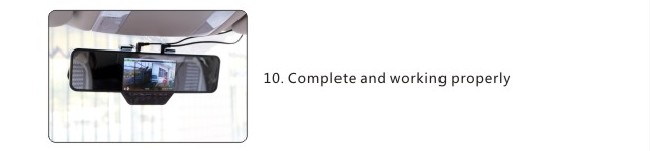

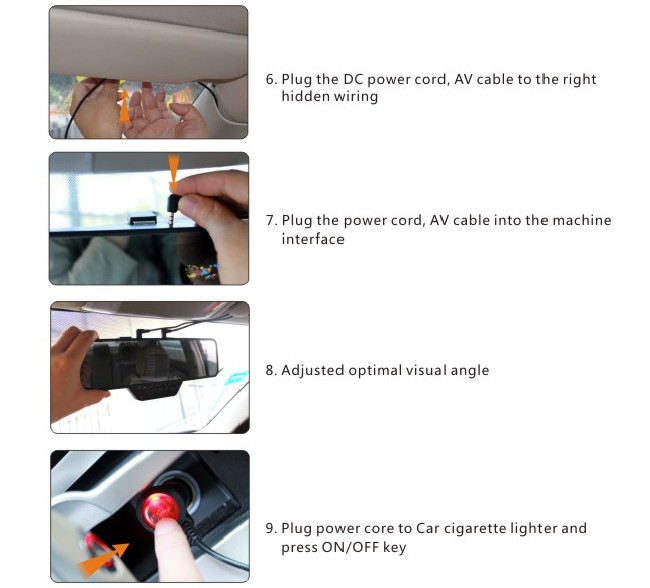

Installation

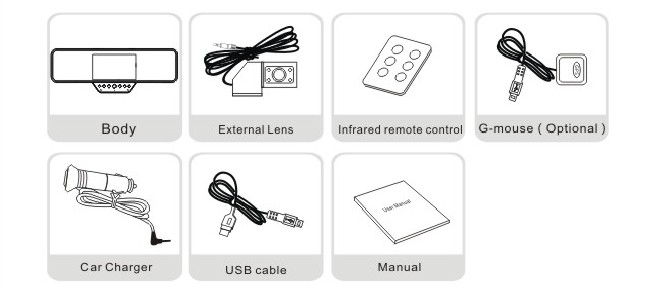

Package





400 60
