Inside CCD car camera

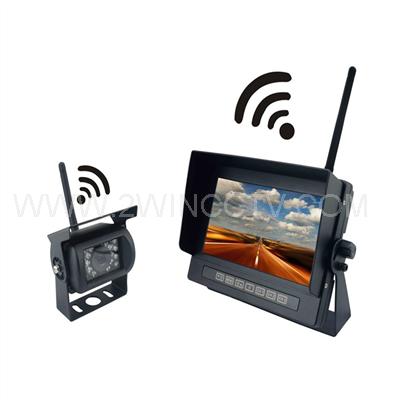

7” Wireless Waterproof
Rear View System (1pcs wireless monitor + 1/2pcs wireless cameras)
Monitor
7inch 16:9 waterproof monitor
Resolution:800*RGB*480
System PAL&NTSC auto-switching
Power supply:12-24V
Built-in 2.4G wireless function, can receive audio/vedio
4 trigger signal, 2.4G 4point could switch
2.4G in open
area:100M
Built-in speaker
OSD menu, remote control
Touch button screen
Dimention:191*140.5*32mm
Camera
Image sensor: Sharp 1/4CCD
Definition:420TV line
Mini illumination:0.5.lux
image angle:120
System: PAL&NTSC auto-switching
2.4G wireless
transmitter:100M in open area
Power supply :12V~24V
Water proof class :IP67/68
Aluminum alloy shell, outside hanging design
special for bus, truck.
Waterproof .shockproof, infrared night vision, Resistance to high
temperature and humidity
Standard accessories L1.5m power line
Monitor Specification
|
Screen Ratio
|
16:9
|
|
Back Light Luminance
|
LED, 300cd/㎡
|
|
Resolution
|
800xRGBx480
|
|
Compatible system
|
NTSC & PAL (automatically)
|
|
OSD control
|
Color, Brightness, Contrast, Volume, Language
(English, Deutsch, French, Spanish, Portugal, Italian, Dutch,
Simplify Chinese)
|
|
View angle
|
Hor. L(70) R(70) Ver. UP(50) DOWN(70)
|
|
Image reversion
|
UP/Down and Left/Right
|
|
Power requirement
|
12V DC (12-24V DC optional) Built-in power source
|
|
Power consumption
|
5W
|
|
Storage temperature
|
-30℃ to 80℃
|
|
Working temperature
|
-20℃ to 70℃
|
|
Size
|
191x140.5x32 mm
|
|
Weight
|
980g
|
|
Key color
|
Reaction button, light grey silk screen(8400C)
|
|
Shockproof level
|
4G
|
|
Dustproof/Waterproof level
|
IP67/IP68
|
|
2.4G wireless
transmitting distance
|
2.4G open
distance can reach 100M
|
|
AV Inputs
|
4 way video input（VI/V2 wireless,V3/V4 wire），1 way audio
input
|
|
Number of Trigger and display
|
4 ways trigger
|
|
Optional functions
|
Built-in speaker, 1-4 wireless waterproof camera
|
|
Other features
|
Metal shell, no deformation, Built-in 2.4G wireless function, can receive audio/video 4 trigger signal
|
|
Accessories
|
Remote controller, Power supply cable , User manual, Sunshade
and bracket, Camera, 2.4G antenna, 2.4G antenna with 3m extended line, 5.5 DC male head extension cord, Hex wrench
|
|
Package
|
10pcs/box net weight:12.7KGS gross
weight:13.5KGS M: 62.4*46*24cm
|
Camera Specification
|
Image sensor
|
PC 1030 & Sharp 1/4 CCD
|
|
Resolution
|
420 TV line
|
|
Mini illumination
|
0.5 Lux, infrared night vision
|
|
Image View angle
|
120°
|
|
System
|
PAL& NTSC
|
|
2.4G wireless
transmitter
|
The distance can reach 100M in the open area, Frequency point optional
|
|
Power supply
|
12V-24V
|
|
Waterproof level
|
IP 67/68
|
|
Appearance
|
Aluminum alloy shell, outside hanging design
|
|
Fit for
|
Bus and truck and some special vehicles
|
|
Other features
|
Waterproof, shockproof, infrared night vision, Resistance to
high temperature and humidity
|
|
Accessories
|
0.6m power
cable
|

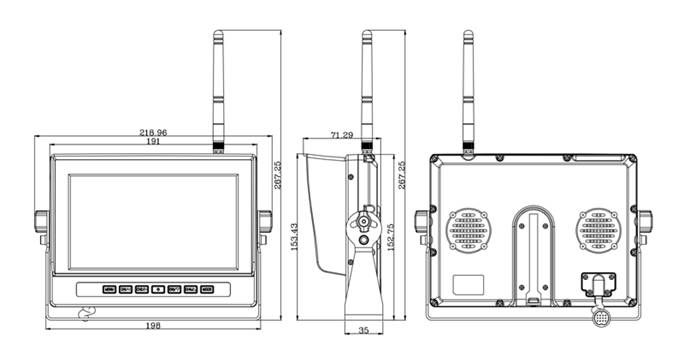

Outline Dimensional Drawing

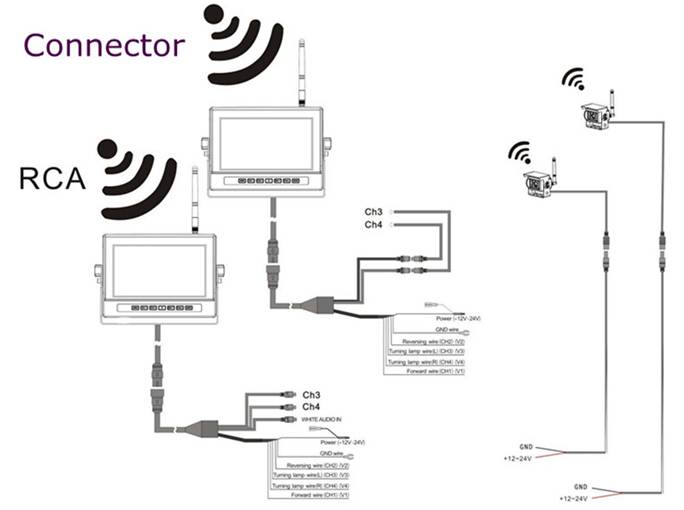

Connection Diagram
