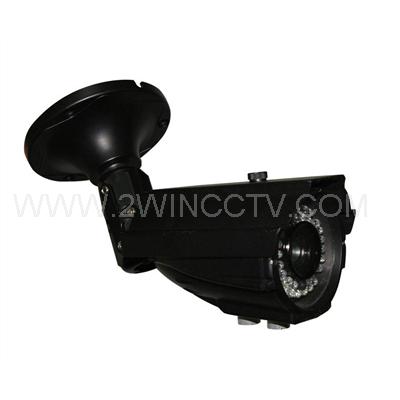

TW-CW175
Name
960H 800TVL CMOS Outdoor Camera
Sale Points
IR LED: ¢5X72PCS
IR range: 60M
2.8-12mm Manual Zoom Lens(2M Pixels)
Water resistance: IP66
Details:
IR LED: ¢5X72PCS IR range: 60M

IR LED: 5X72PCS IR range: 60M

2.8-12mm Manual Zoom Lens (2M Pixels)

Water resistance: IP66 3-Axis cable built-in bracket

Size: 275(W)x125(H)x105(D)mm

Weight: 1.7kg



Image Sensor

1/3" SONY

1/3" SHARP

1/3" SONY

1/3" SHARP

1/3" SONY

1/3" CMOS

Horizontal Resolution

700TVL, Low Illumination, Real WDR, OSD, 3D NR, UTC Effio-P

700TVL, Low Illumination, Super WDR, 3D NR, Demist, SLR, Sense-up, UTC

700TVL, Low Illumination, DWDR, OSD, DNR, UTC Effio-E

700TVL, Low Illumination, DWDR, OSD, DNR

650TVL, Low Illumination, DWDR, OSD, DNR

600TVL, Low Illumination

500TVL, Low Illumination

700TV Lines Low Illumination

Pixels

NTSC:976(H)×494(V),
PAL:976(H)x582(V )

N:768(H)×494(V,
P:752(H)x582(V)

P:752(H)×582(V)
N:768(H)×494(V)

P:500(H)×582(V)
N:510(H)×492(V)

728(H)×488(V)

TV System

PAL/NTSC

IR range

60M

IR LED

5X72PCS

Lens

2.8-10mm Manual Zoom Lens

Sync System

Internal

Usable Illumination

0.001Lux/F2.0

0.01Lux/F2.0

0.001Lux/F2.0

S/N Ratio

≥52dB (AGC OFF)

≥48dB (AGC OFF)

≥46dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10 ~ +50 RH95% Max

Storage  Temperature

-20 ~ +60 RH95% Max

White Balance

Auto

Power Source

DC12V 150mA

Dimension

275(W)x125(H)x105(D)mm

Package

59*38*40mm, 12PCS/CTN

Weight

1.7kg
