All Products  >  CCTV CAMERA  >  Waterproof Zoom Lens  >  TW-CW176

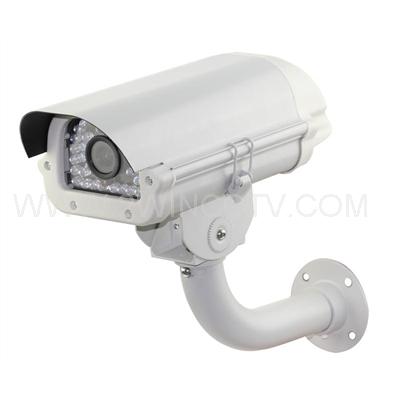

TW-CW176
Name
50M 1000TVL 720P Megapixel Camera
Sale Points
IR LED: ¢8X36PCS
IR range: 50M
6-22mm Manual Zoom Lens
Water resistance: IP66
Details:
IR LED: ¢8X36PCS IR range: 50M

IR LED: 8X36PCS IR range: 50M

6-22mm Manual Zoom Lens

Water resistance: IP66

Build in auto temperature control

Size: 230(W)x180(H)x115(D)mm

Weight: 2.6kg



Image Sensor

1/3" SONY

1/3" SHARP

1/3" SONY

1/3" SHARP

1/3" SONY

Horizontal Resolution

700TVL, Low Illumination, DWDR, OSD, DNR, UTC Effio-E

700TVL, Low Illumination, DWDR, OSD, DNR

650TVL, Low Illumination, DWDR, OSD, DNR

600TVL, Low Illumination

500TVL, Low Illumination

Pixels

NTSC:976(H)×494(V),
PAL:976(H)x582(V )

NTSC:768(H)×494(V),
PAL:752(H)x582(V)

PAL:752(H)×582(V),
NTSC:768(H)×494(V)

PAL:500(H)×582(V)
NTSC:510(H)×492(V)

TV System

PAL/NTSC

IR LED

8X36PCS

IR Series Distance

50M

Lens

6-22mm Manual Zoom Lens

Sync System

Internal

Usable Illumination

0.001Lux/F2.0

0.01Lux/F2.0

0.001Lux/F2.0

S/N Ratio

≥52dB (AGC OFF)

≥48dB (AGC OFF)

≥46dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10 ~ +50 RH95% Max

Storage  Temperature

-20 ~ +60 RH95% Max

White Balance

Auto

Power Source

DC12V 650mA

Dimension

230(W) x180(H) x115(D)mm

Package

50*39*35mm, 6PCS/CTN

Weight

2.6kg
